SKU: NS5-MQ00B-V2

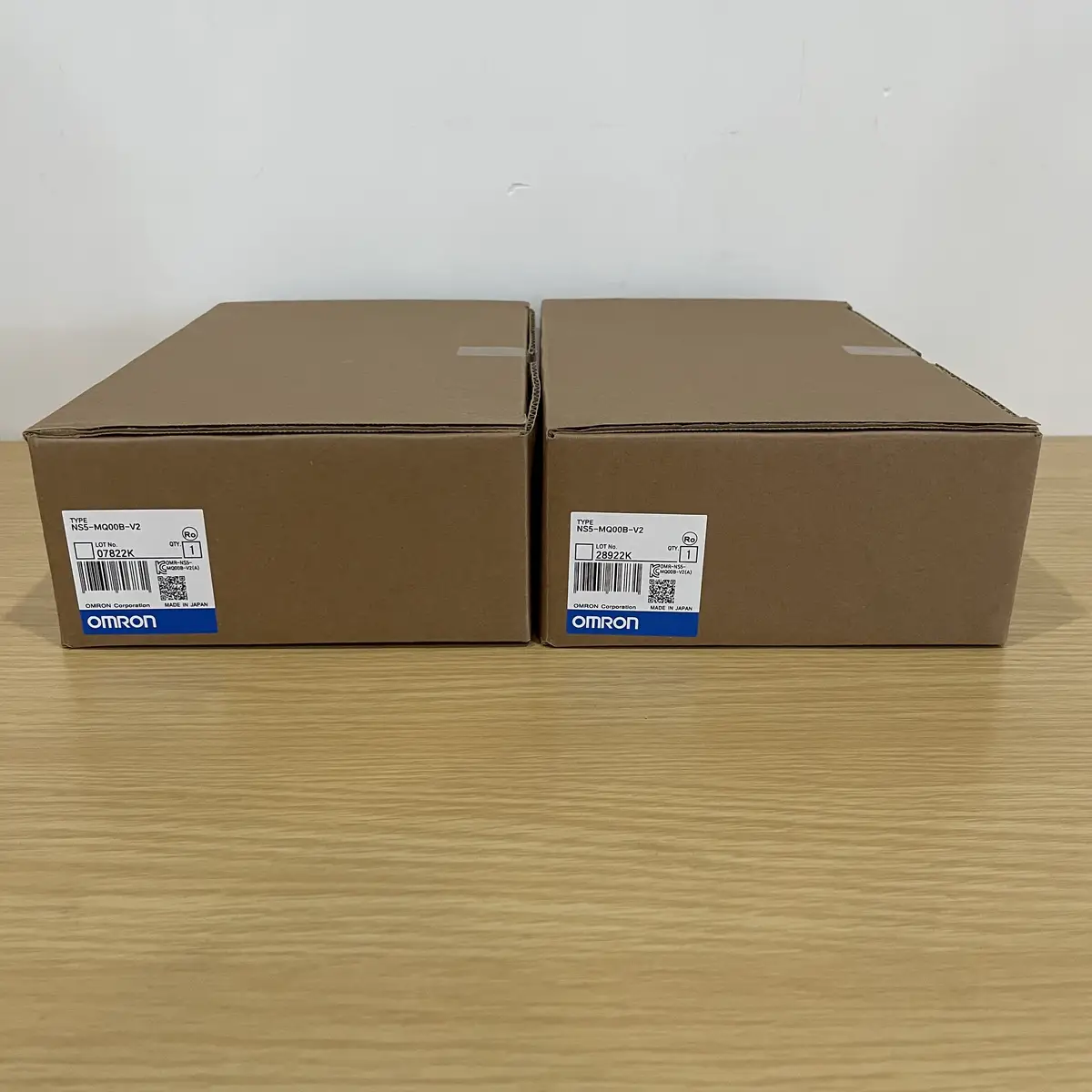

Omron NS5-MQ00B-V2 NS Series HMI Touchscreen 5.7 inch STN Display
5.7-inch STN HMI with 320x240 resolution and 4096 colors, supporting multiple PLC protocols
USD 425.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 5.7-inch STN display with 320x240 resolution
- 4096 color support for rich visual representation
- 6MB screen data capacity for complex applications
- NT Link and multi-vendor PLC protocol support
- Compact design ideal for space-constrained installations
- Serial communication interface (RS-232C)
- IP65 front panel rating for dust and water resistance
Omron NS5-MQ00B-V2 Human Machine Interface
The Omron NS5-MQ00B-V2 is a compact yet powerful 5. 7-inch STN Human Machine Interface designed for industrial automation applications. This touchscreen panel provides an effective solution for machine operators to monitor and control industrial processes with ease. The NS5-MQ00B-V2 features a 5. 7-inch STN display with 320x240 pixel resolution and support for 4096 colors, delivering clear and vibrant visual feedback for operators. With a 6MB screen data capacity, this HMI can store complex screens, multiple screens, and extensive graphical elements. The unit supports direct connection to Omron PLCs via NT Link protocol, as well as communication with PLCs from other manufacturers through serial communication. Its compact design makes it ideal for applications where panel space is limited, while its robust construction ensures reliable operation in industrial environments. The NS5-MQ00B-V2 is particularly suitable for small to medium-sized machinery and process control applications where basic HMI functionality is required at an economical price point.
Typical Applications
- Small CNC machine control interfaces
- Packaging machinery operator panels
- Industrial furnace temperature monitoring
- Conveyor system control and monitoring
- Packaging equipment HMI applications
- Textile machinery control interfaces
- Woodworking machine operator terminals
- Small-scale process automation
Buying Checklist
- Economical solution for basic HMI requirements
- Proven Omron reliability and quality
- Easy programming with NS-Designer software
- Wide compatibility with Omron PLCs
- Compact size fits space-constrained panels
- Low power consumption reduces operational costs
- IP65 rating ensures durability in industrial settings
Technical Specifications
| Display Size | 5.7 inches |
|---|---|
| Display Type | STN monochrome/color |
| Resolution | 320 x 240 pixels |
| Colors | 4096 colors |
| Screen Data Capacity | 6 MB |
| Communication Ports | RS-232C |
| Protocol Support | NT Link, Omron PLC protocols |
| Power Supply | 24 VDC |
| Current Consumption | 300 mA or less |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 60 °C |
| Front Panel Rating | IP65 |
| Weight | Approx. 0.5 kg |
| Dimensions | 165 x 105 x 43 mm (W x H x D) |
Frequently Asked Questions
Does the NS5-MQ00B-V2 support Ethernet connectivity?
The NS5-MQ00B-V2 uses RS-232C serial communication. For Ethernet connectivity, consider NS series models with Ethernet ports.
What software is used to program this HMI?
The NS5-MQ00B-V2 is programmed using Omron NS-Designer software, which provides comprehensive screen creation and editing capabilities.
Can this HMI connect to third-party PLCs?
Yes, the NS5-MQ00B-V2 supports communication with PLCs from other manufacturers through its serial interface using appropriate protocol drivers.
Is the display suitable for bright industrial environments?
The STN display provides good visibility in normal industrial lighting conditions. For very bright environments, consider models with enhanced brightness specifications.
