SKU: NS5-TQ10-V2

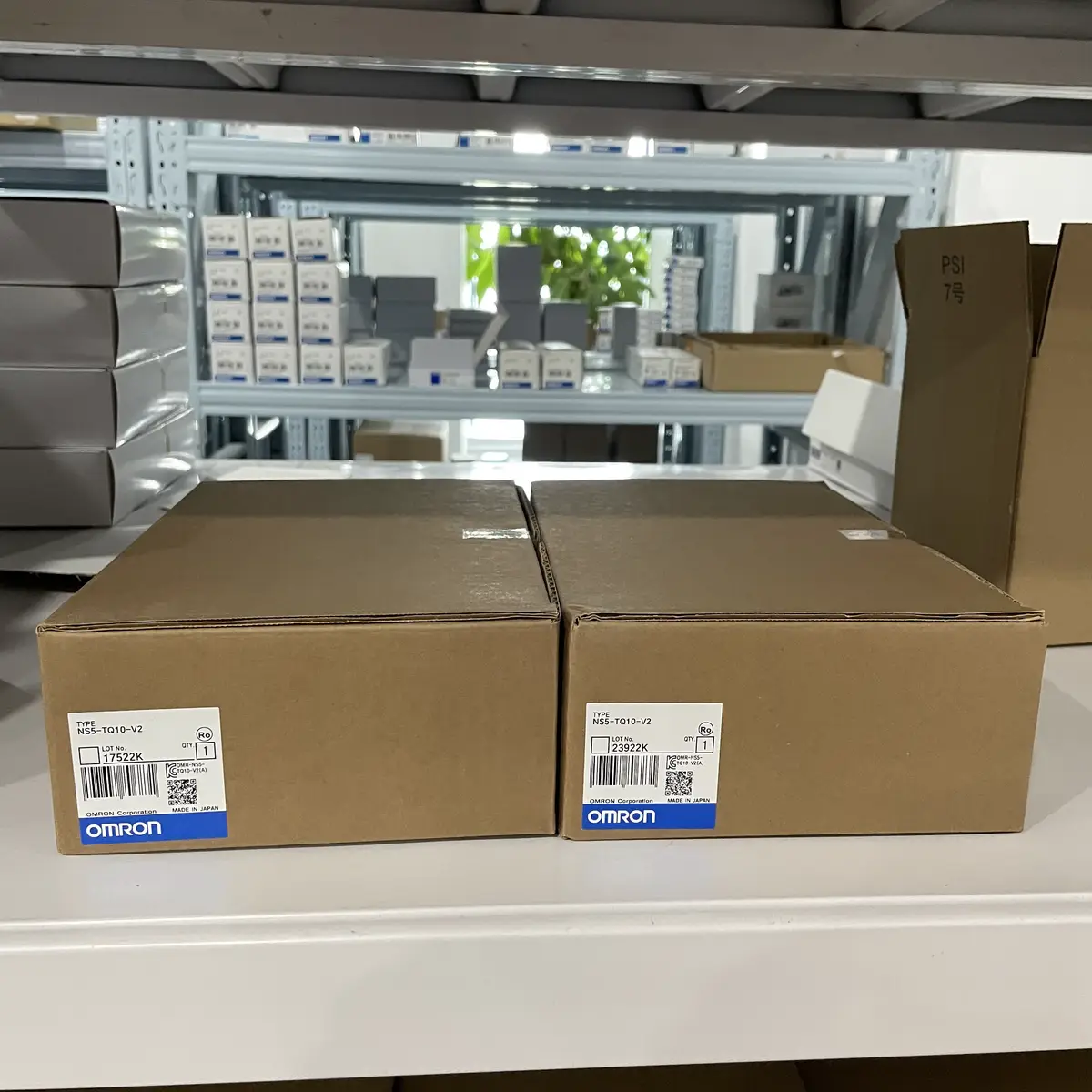

Omron NS5-TQ10-V2 NS Series HMI 5.7 Inch
Omron NS5-TQ10-V2 is a 5.7 inch NS series HMI with TFT display, enhanced features for compact operator interface.
USD 450.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- NS-series 5.7-inch HMI platform
- Supports control, alarms, and diagnostics workflows
- Suitable for compact cabinet door installations
- Integrates with PLC communication and tag structures
- Useful for recipe and parameter entry tasks
- Applicable to retrofit and new-build machine UIs
Compact NS Interface for Daily Machine Operations
NS5-TQ10-V2 belongs to Omron NS HMI lineup and is used where compact panel footprint and reliable operator interaction are both required. It is commonly configured for mode control, setpoint adjustment, alarm acknowledgement, and maintenance diagnostics in packaging and assembly equipment. A 5. 7-inch class panel supports practical page design while fitting constrained cabinet doors. Integrators should verify communication protocol mapping with PLC tags, define alarm workflows, and implement appropriate user access controls during project development. Installation work should include cutout verification, cable service loops, and environment suitability checks. NS5-TQ10-V2 is typically selected for stable, maintainable human-machine interaction in machine fleets where service speed and operator clarity are critical.
Typical Applications
- Operator mode selection and command screens
- Alarm display and acknowledgement management
- Recipe and process parameter entry
- Maintenance diagnostics and manual operation pages
- Runtime counters and status monitoring dashboards
- Legacy HMI replacement in existing machine cabinets
Buying Checklist
- Confirm required UI complexity fits 5.7-inch screen layout.
- Validate PLC communication compatibility before deployment.
- Check cabinet cutout and depth constraints.
- Define user-role hierarchy and security policy.
- Keep project backups and version history for service recovery.
Technical Specifications
| Model | NS5-TQ10-V2 |
|---|---|
| Series | NS5 |
| Screen Size | 5.7 inch |
| Display Type | TFT Color LCD |
| Resolution | 320 x 240 (QVGA) |
| Communication | Serial |
| Supply Voltage | DC24V |
| Memory | 16MB |
| Operating Temperature | 0 to +55°C |
| Protection | IP65 (front panel) |
| Software | CX-Designer |
Frequently Asked Questions
What's the difference between TQ00 and TQ10?
TQ10 may have enhanced features or updated hardware. Same screen size, same TFT display. Check Omron documentation.
Can this HMI connect to vision systems?
Yes, NS series can display vision system results. Connect to Omron FQ/FH series. Display pass/fail.
Can I backup HMI program?
Yes, CX-Designer can upload/download HMI program. Backup to PC or memory card.
What's the viewing angle?
TFT display: wide viewing angle (±80° typical). Clear display from various angles.
