SKU: NX-DA2205

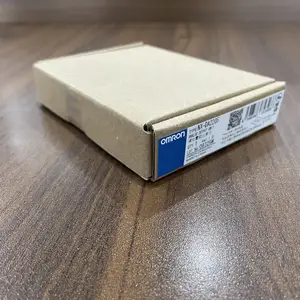

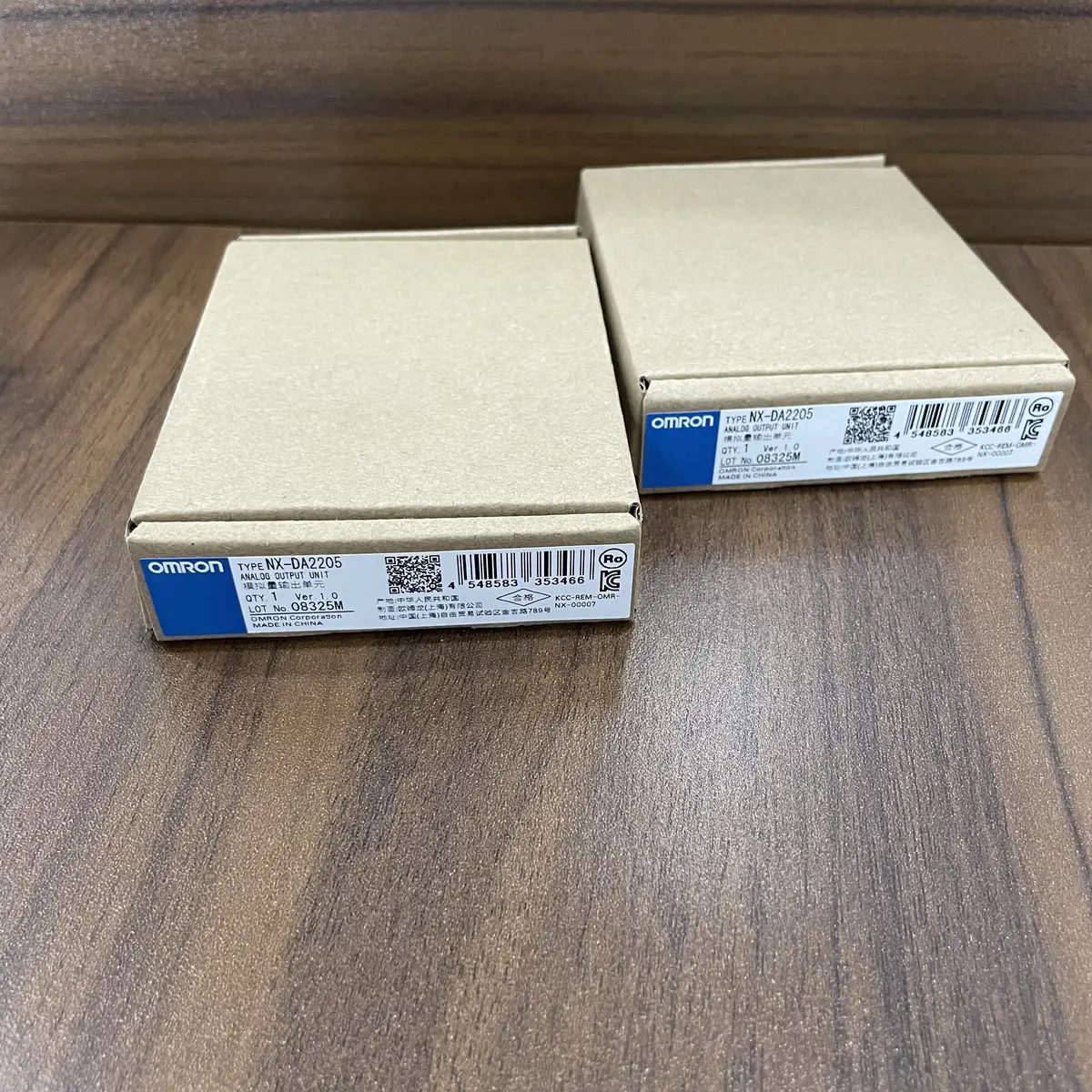

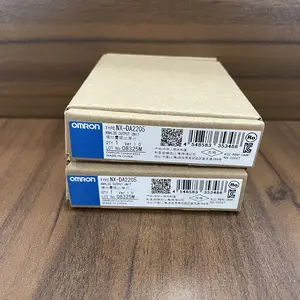

Omron NX-DA2205 Analog Output Unit 2 Channels for NX Modular I/O
Omron NX-DA2205 is a 2-channel analog output unit for NX series, providing voltage or current output for process control.
USD 302.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 2-channel analog output expansion for NX modular systems
- Supports variable control signals to analog-capable devices
- Compact slice format for high-density panel design
- Integrates with Sysmac engineering and maintenance workflow
- Useful for hybrid discrete-plus-analog automation tasks
- Facilitates scalable control architecture upgrades
Dual-Channel Analog Command Output for Process and Machine Control
The NX-DA2205 expands NX control racks with two analog output channels, allowing PLC logic to issue variable commands to field equipment. It is useful in applications requiring speed references, valve control signals, or other continuous-value outputs. Integrated within Sysmac architecture, this module supports consistent parameter management and streamlined diagnostics, making it a practical choice for hybrid systems that combine discrete sequencing with analog process adjustment.
Typical Applications
- Sending speed references to inverter-driven motors
- Controlling proportional valve command signals
- Adjusting process setpoints in utility skids
- Extending analog output capability in NX retrofit projects
- Managing variable command outputs in hybrid machine logic
- Standardizing analog signal architecture across production lines
Buying Checklist
- Adds practical analog command capability with minimal footprint
- Supports improved process flexibility and tuning control
- Sysmac-native integration reduces engineering overhead
- Modular format supports future expansion plans
- Reliable choice for continuous-control applications
Technical Specifications
| Model | NX-DA2205 |
|---|---|
| Series | NX |
| Type | Analog Output Unit |
| Output Channels | 2 channels |
| Output Types | Voltage: 0-10V, ±10V; Current: 0-20mA, 4-20mA |
| Resolution | 1/32000 |
| Accuracy | ±0.1% full scale |
| Conversion Time | 1ms per channel |
| Load Resistance | 1kΩ min (voltage), 600Ω max (current) |
| Isolation | Channel-to-channel isolated |
| Connection | Push-in terminals |
| Current Consumption | 50mA at 5VDC |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What devices can I control with analog output?
VFD speed reference (0-10V or 4-20mA), proportional valves, temperature controller setpoint, chart recorders, analog indicators.
How do I configure voltage vs current output?
Set via software in Sysmac Studio. Each channel independently configurable. No DIP switches. Configuration downloads to coupler.
What's the output update rate?
1ms per channel. For 2 channels: 2ms total update time. Sufficient for most process control applications.
Can I use this for closed-loop control?
Yes, common application. Controller reads process variable (analog input), calculates PID, writes output (analog output) to control valve/VFD.
Related Products
Customers who viewed NX-DA2205 often pair it with these.
Need NX-DA2205 pricing or lead time?
Email sales@hyx-automation.com or send your inquiry via the form. We respond same business day.
Send Inquiry
