SKU: NX-ECC201

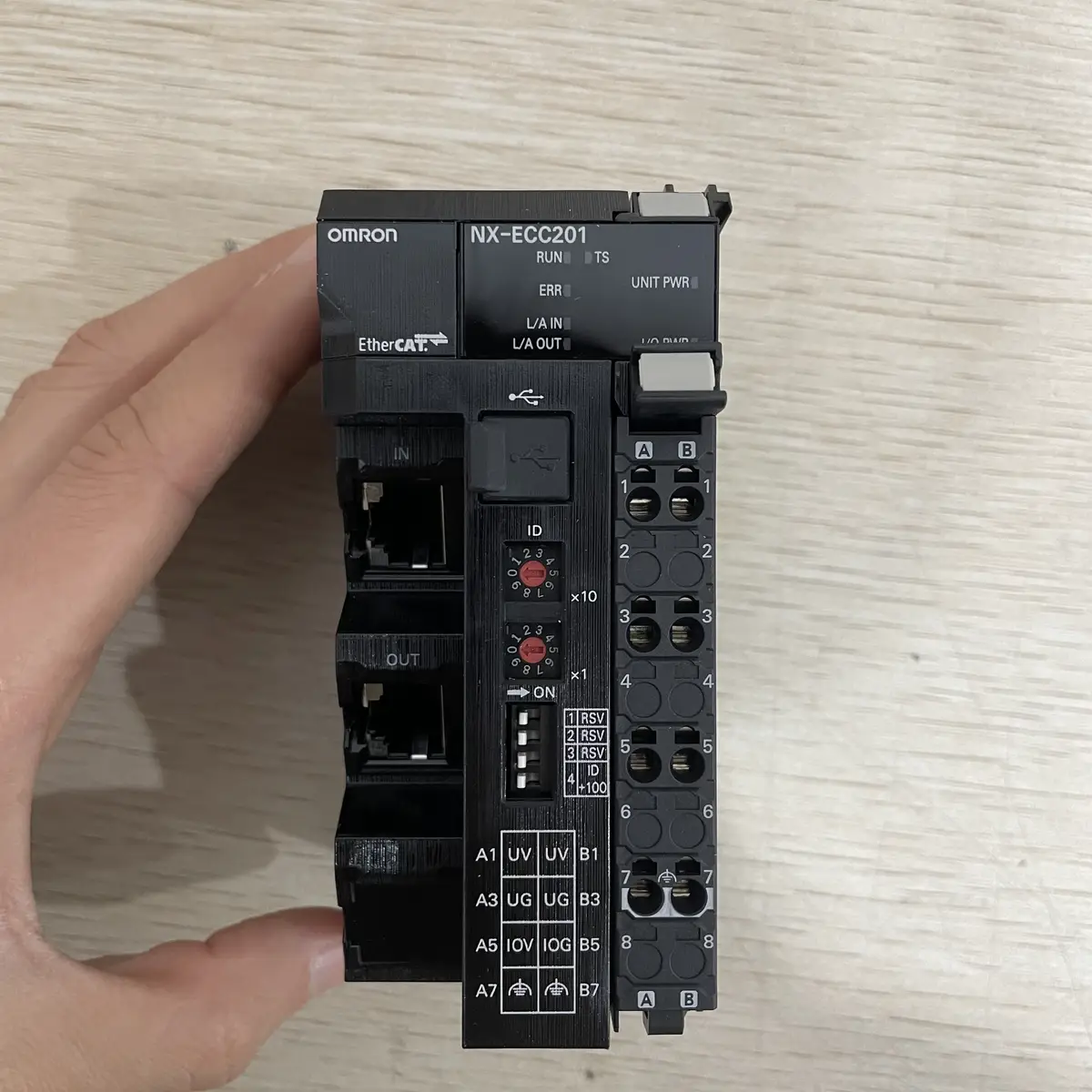

Omron NX-ECC201 EtherCAT Coupler Module for NX Distributed I/O
Omron NX-ECC201 is an EtherCAT coupler module connecting NX series I/O to EtherCAT network for distributed I/O systems.
USD 110.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- EtherCAT coupling for NX remote I/O segments
- Supports deterministic high-speed communication behavior
- Enables modular distributed architecture planning
- Reduces long wiring runs from centralized cabinets
- Suitable for scalable OEM automation platforms
- Improves maintainability with segmented I/O topology
Deterministic EtherCAT Coupling for Scalable NX Remote Architectures
The NX-ECC201 connects distributed NX I/O segments to EtherCAT networks where predictable communication and modular expansion are required. It supports machine designs that decentralize I/O for cleaner wiring and easier service. This coupler is suitable for OEM and plant projects targeting maintainable, high-performance control topology.
Typical Applications
- Linking remote NX slices into EtherCAT systems
- Building decentralized I/O islands on production lines
- Expanding control layouts in phased machine upgrades
- Reducing panel congestion in large installations
- Standardizing remote coupler selection in OEM platforms
- Improving diagnostics through segmented network design
Buying Checklist
- Deterministic coupling improves control consistency
- Supports scalable distributed architecture growth
- Reduces installation complexity in larger machines
- Strong fit for modern modular automation systems
- Practical long-term component for EtherCAT designs
Technical Specifications
| Model | NX-ECC201 |
|---|---|
| Series | NX |
| Type | EtherCAT Coupler Module |
| Ethernet Ports | 2 ports (100 Mbps) |
| Protocol | EtherCAT |
| Max I/O Points | 512 inputs, 512 outputs |
| Max NX Units | 64 units |
| Cycle Time | 0.5ms minimum |
| Supply Voltage | 24VDC |
| Current Consumption | 150mA at 24VDC |
| Connection | Push-in terminals |
| Mounting | DIN rail |
| Operating Temperature | 0 to +55°C |
| Certifications | CE, UL, CSA, EtherCAT |
Frequently Asked Questions
What controllers work with NX-ECC201?
NJ/NX series machine controllers (EtherCAT master), third-party EtherCAT masters (Beckhoff, TwinCAT, etc.).
How many NX I/O units can I connect?
Maximum 64 NX units per coupler. Limited by power budget and I/O capacity.
What's the advantage of EtherCAT?
High speed (0.5ms cycle), long distance (100m between nodes), simple topology (daisy-chain), multi-vendor compatibility.
Do I need to configure each I/O unit?
No, NX-ECC201 auto-recognizes connected NX units. Configuration done in Sysmac Studio.
