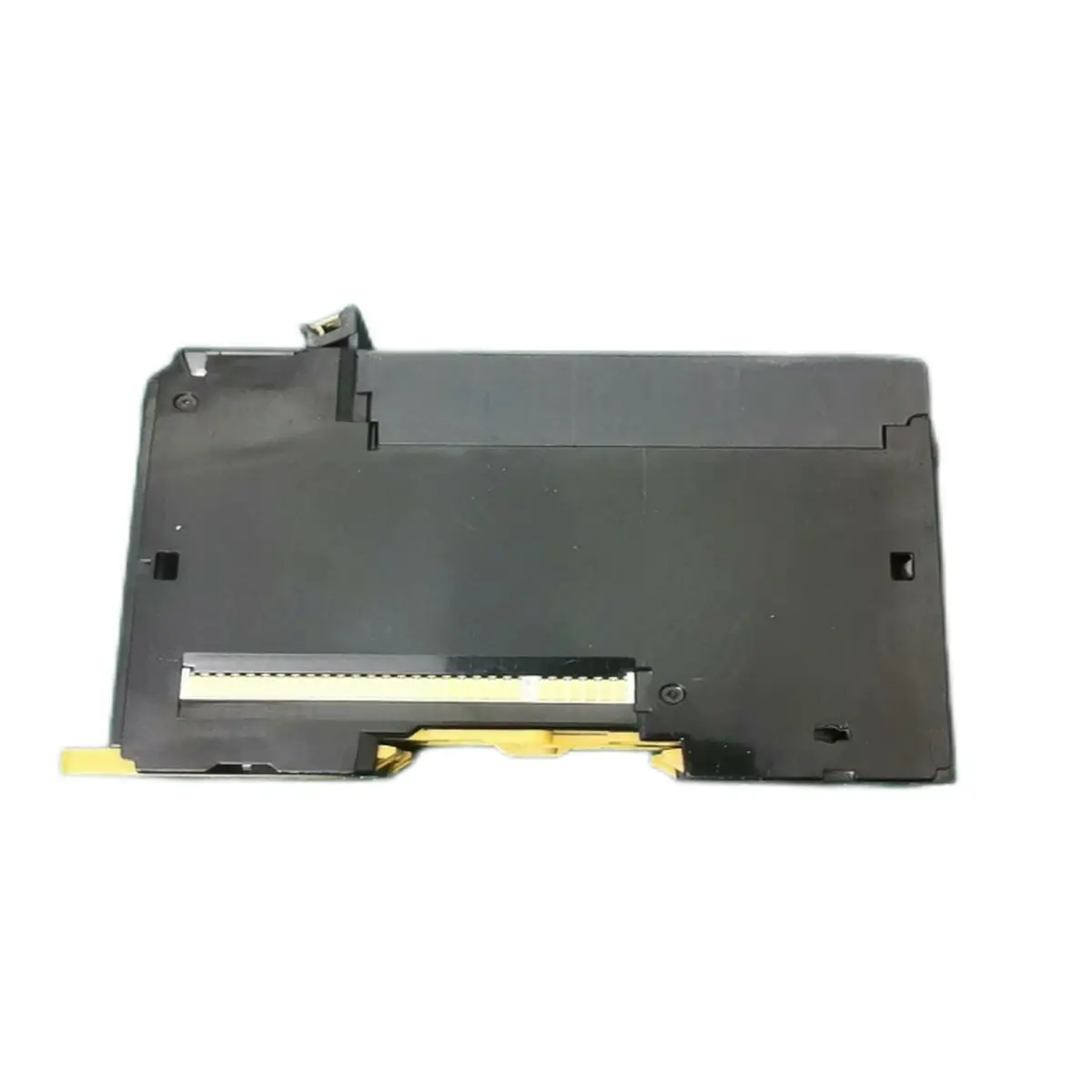

Omron NX-AD3603 Analog Input Module 4-Channel ±10V for NX Series
Omron NX-AD3603 is a 4-channel analog input module for NX series, accepting ±10V voltage inputs for bipolar signal monitoring.
USD 150.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 4-channel analog input for compact process monitoring
- ±10V signal support for broad industrial analog devices
- Designed for NX modular control architecture integration
- Suitable for mixed discrete and analog machine applications
- Improves process visibility for diagnostics and optimization
- Supports scalable expansion in EtherCAT/NX environments
4-Channel Voltage Input Expansion for Data-Rich NX Process Control
The NX-AD3603 enables compact analog signal acquisition from transmitters and control devices requiring ±10V input handling. It is suitable for machine sections combining variable process monitoring with discrete control logic. This module supports scalable NX architecture and improves visibility for tuning, diagnostics, and quality management.
Typical Applications
- Reading analog transmitters in utility control skids
- Monitoring process variables in packaging machines
- Collecting feedback for closed-loop control tuning
- Expanding analog channels in existing NX racks
- Standardizing voltage-input architecture across OEM platforms
- Modernizing legacy analog sections with modular NX hardware
Buying Checklist
- ±10V support fits common analog device ecosystems
- 4 channels provide practical compact expansion
- Improves process control visibility and tuning potential
- Strong fit for scalable mixed-signal machine architectures
- Useful for both retrofit upgrades and new deployments
Technical Specifications
| Model | NX-AD3603 |
|---|---|
| Series | NX |
| Type | Analog Input Unit |
| Input Channels | 4 channels |
| Input Types | Voltage: ±10V |
| Resolution | 1/32000 |
| Accuracy | ±0.1% full scale |
| Conversion Time | 1ms per channel |
| Input Impedance | 1MΩ |
| Isolation | Channel-to-channel isolated |
| Connection | Push-in terminals |
| Current Consumption | 50mA at 5VDC |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What's ±10V input used for?
Bipolar signals: servo drive command (±10V = forward/reverse), valve position (±10V = open/close), bidirectional control signals.
Can I use this for unipolar 0-10V signals?
Yes, ±10V input accepts 0-10V signals. 0V = mid-scale, 10V = full positive. Configure scaling in controller for 0-10V range.
What's the input impedance?
1MΩ for voltage inputs. High impedance minimizes loading on signal source. Suitable for most industrial transmitters.
Is channel isolation important?
Yes, channel-to-channel isolation prevents ground loops and noise coupling between channels. Essential for accurate measurements in noisy environments.
