SKU: NX-EC0132

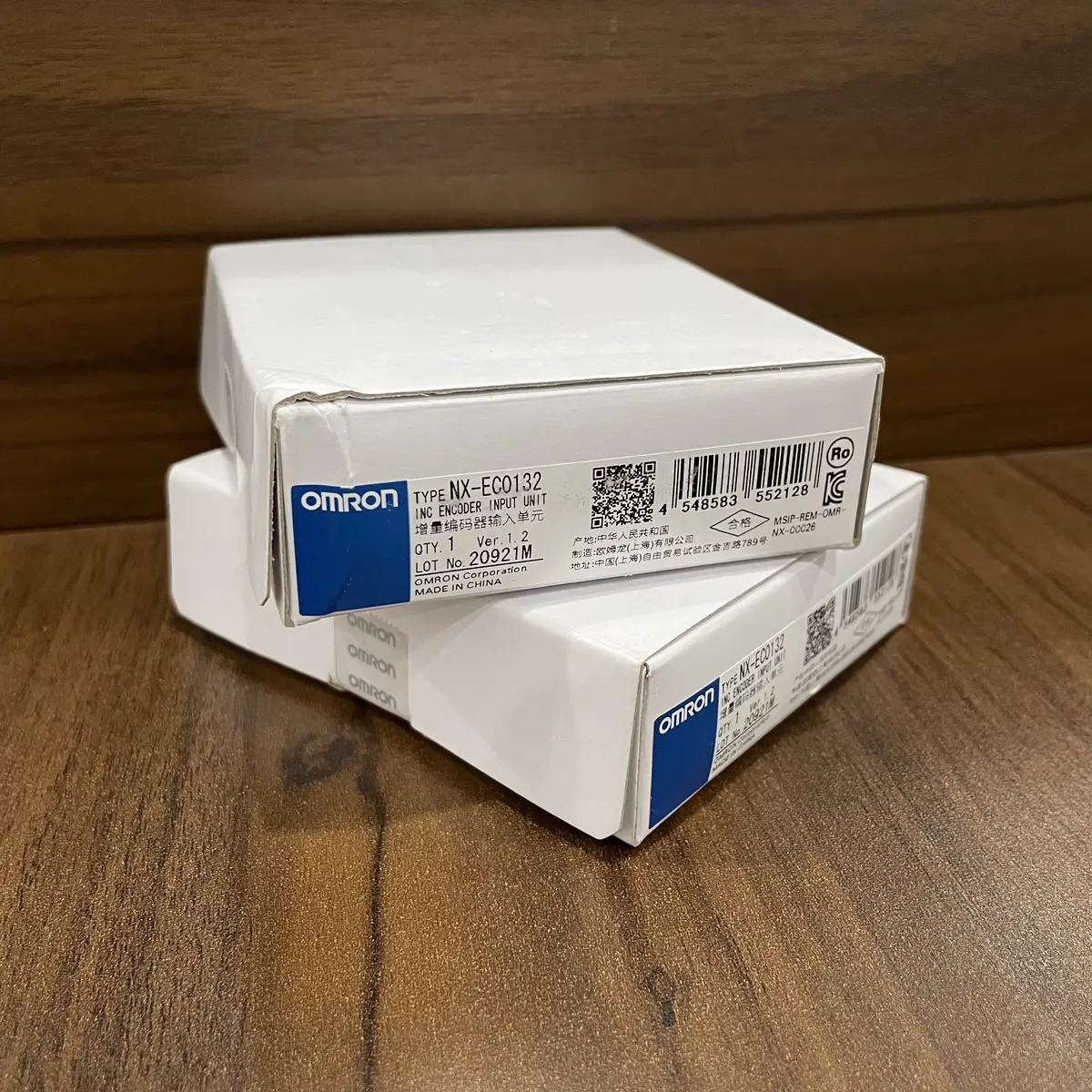

Omron NX-EC0132 Encoder Interface Unit for NX Series
Omron NX-EC0132 is an encoder interface unit for NX series, accepting incremental encoder signals for position feedback.
USD 132.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Dedicated encoder signal interface for NX control systems
- Supports precise position and speed feedback processing
- Suitable for synchronization and tracking applications
- Improves motion-related data quality in control logic
- Fits scalable modular architecture for advanced machines
- Useful in both new design and retrofit feedback upgrades
Encoder Signal Integration for Precision Motion and Position Feedback
The NX-EC0132 enables reliable encoder signal handling in automation systems requiring accurate motion feedback for control and synchronization. It is suited for conveyor tracking, axis monitoring, and process timing applications where position data quality affects throughput and product consistency. This module supports scalable NX architecture with maintainable diagnostics and modular expansion.
Typical Applications
- Processing encoder signals for conveyor tracking
- Providing position feedback in motion control sections
- Synchronizing machine operations using speed reference data
- Upgrading legacy feedback interfaces in retrofit projects
- Standardizing encoder integration across OEM platforms
- Improving quality through tighter motion feedback control
Buying Checklist
- Enhances control precision with reliable encoder processing
- Supports synchronized automation workflows
- Strong fit for motion and tracking-intensive machinery
- Modular design improves maintainability and expansion
- Practical feedback upgrade for performance-oriented systems
Technical Specifications
| Model | NX-EC0132 |
|---|---|
| Series | NX |
| Type | Encoder Interface Unit |
| Encoder Channels | 2 channels |
| Encoder Type | Incremental (A/B/Z) |
| Max Frequency | 500kHz |
| Input Voltage | DC5-24V |
| Count Range | 32-bit (signed) |
| Functions | Position, speed, direction |
| Connection | Push-in terminals |
| Current Consumption | 80mA at 5VDC |
| Operating Temperature | 0 to +55°C |
| Mounting | DIN rail |
Frequently Asked Questions
What encoders can I connect?
Incremental encoders with A/B/Z outputs. Line driver (RS-422) or open collector output. Max frequency 500kHz.
What's the maximum count frequency?
500kHz per channel. Suitable for high-speed encoder feedback. For higher frequency, use dedicated high-speed counter unit.
Can I use this for position feedback?
Yes, common application. Connect encoder to motor, unit counts pulses, controller reads position. Use for closed-loop position control.
What functions are available?
Position counting, speed measurement, direction detection. Preset, compare, latch functions. Configure in Sysmac Studio.
