SKU: NX-ECC202

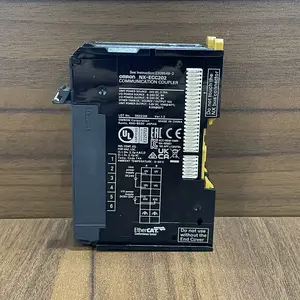

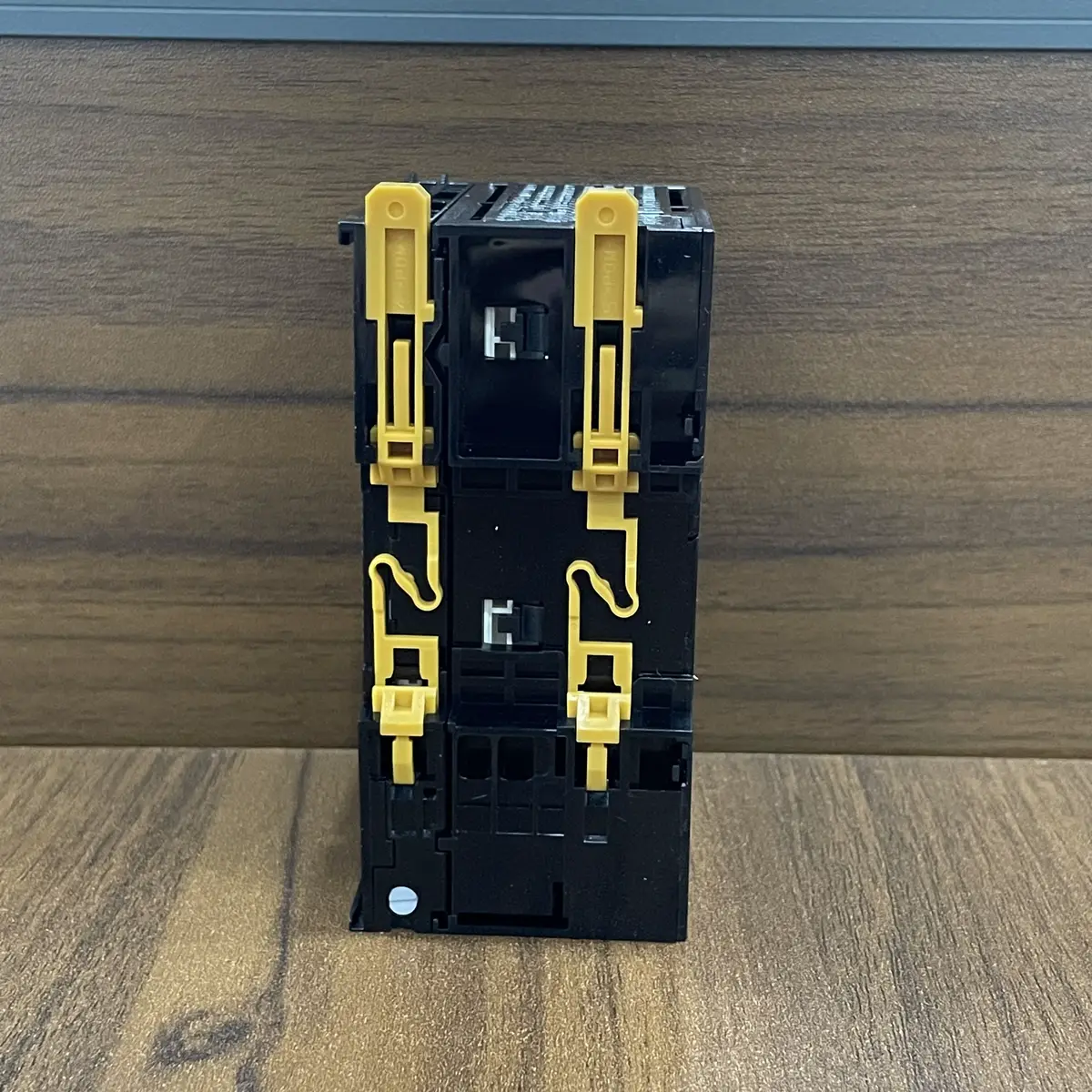

Omron NX-ECC202 EtherCAT Coupler Unit for High-Speed Remote I/O
Omron NX-ECC202 is an EtherCAT coupler unit for high-speed remote I/O, connecting NX series I/O to EtherCAT network.
USD 102.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- EtherCAT coupler function for NX remote I/O integration
- Supports high-speed deterministic communication behavior
- Enables scalable distributed control system architecture
- Helps reduce centralized cabinet wiring complexity
- Suitable for advanced machine and line automation platforms
- Practical for both new deployment and phased expansion
High-Speed EtherCAT Coupling for Distributed NX I/O Architectures
The NX-ECC202 links remote I/O segments into EtherCAT-based control systems where deterministic communication and modular expansion are essential. It is suitable for machine designs that distribute I/O near process zones to reduce wiring complexity and improve maintainability. This coupler supports scalable architecture planning for OEM platforms and advanced production lines.
Typical Applications
- Connecting remote NX I/O stations to EtherCAT networks
- Building distributed I/O zones along production lines
- Reducing long cable runs from central cabinets
- Expanding machine architecture in phased deployment projects
- Improving diagnostics via segmented remote I/O topology
- Standardizing EtherCAT remote coupler design in OEM platforms
Buying Checklist
- Deterministic EtherCAT performance for responsive control
- Supports clean distributed architecture growth
- Reduces wiring complexity in larger machine layouts
- Improves maintainability through modular remote design
- Strong foundation for scalable modern automation systems
Technical Specifications
| Model | NX-ECC202 |
|---|---|
| Series | NX |
| Type | EtherCAT Coupler Unit |
| Ethernet Ports | 2 ports (100 Mbps) |
| Protocol | EtherCAT |
| Max I/O Points | 512 inputs, 512 outputs |
| Max NX Units | 64 units |
| Cycle Time | 0.5ms minimum |
| Supply Voltage | 24VDC |
| Current Consumption | 150mA at 24VDC |
| Mounting | DIN rail |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What's the difference between ECC201 and ECC202?
ECC202: enhanced features, faster cycle time, more I/O capacity. Check Omron documentation for specific differences.
How many NX I/O units can I connect?
Maximum 64 NX units per coupler.
What's the advantage of EtherCAT?
High speed, long distance, simple topology, multi-vendor compatibility.
Do I need to configure each I/O unit?
No, auto-recognized by coupler.
