SKU: NX-ID4342

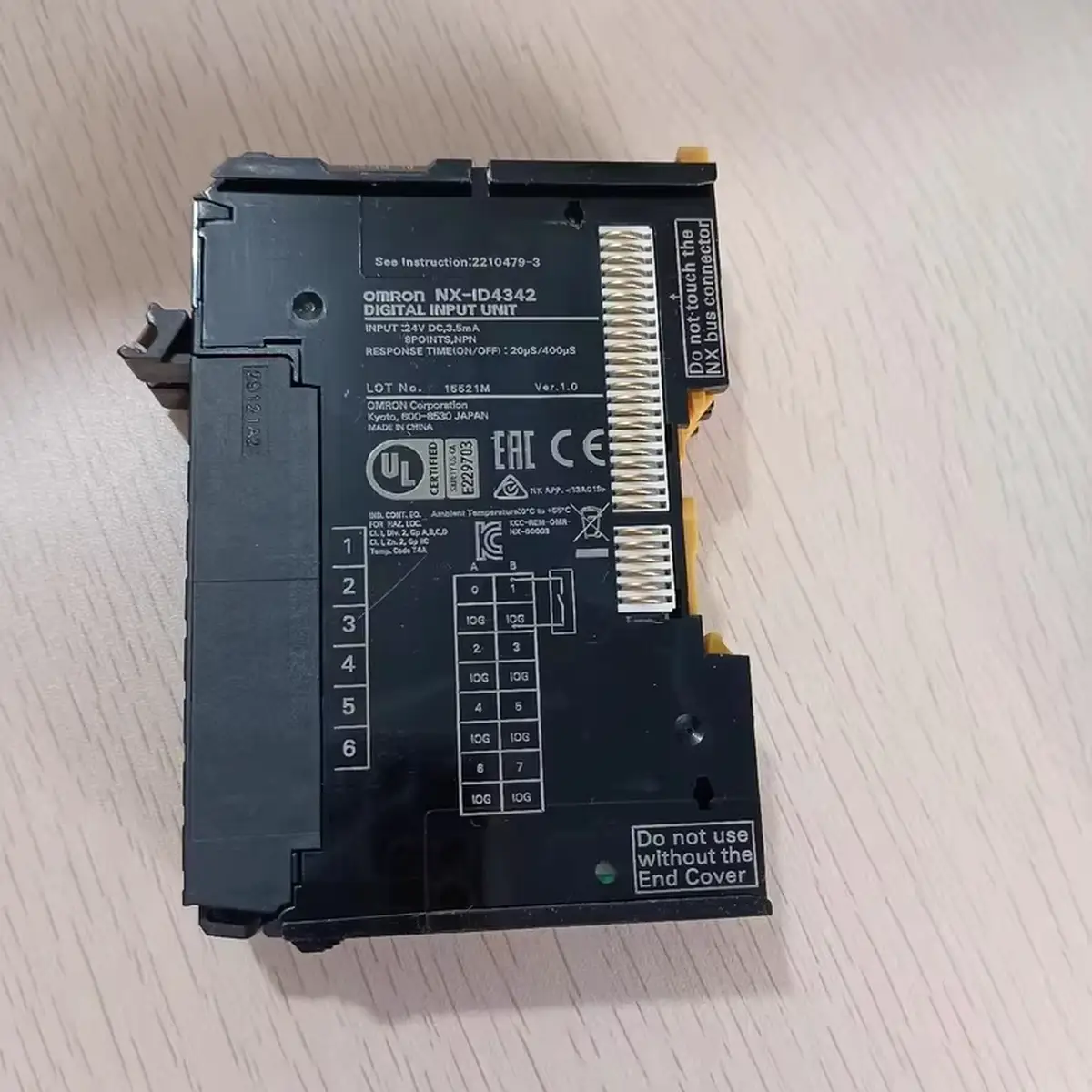

Omron NX-ID4342 Digital Input Unit 32 Points for NX/NJ PLC Systems
Omron NX-ID4342 is a 32-point digital input unit for NX/NJ PLC systems, providing high-density DC input.
USD 52.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 32 digital input points in a compact NX slice format
- Designed for Sysmac NX/NJ architectures with distributed modular expansion
- Improved wiring density for cabinets with high sensor count
- Stable signal detection for industrial environments with electrical noise
- Clear channel-level mapping in PLC software for troubleshooting
- Suitable for scalable multi-station machine designs
High-Density Digital Input for Modular NX Control Architectures
The NX-ID4342 gives machine builders a compact way to acquire many discrete field signals while keeping the control panel clean and expandable. Integrated with the Sysmac platform, this unit is suited for packaging, assembly, and material handling projects where deterministic input scanning is required. It helps reduce terminal count per signal group, simplifies diagnostics in software, and supports consistent maintenance workflows across standardized production lines.
Typical Applications
- Collecting photoelectric and proximity sensor signals on conveyor zones
- Monitoring interlocks and limit switches in packaging lines
- Reading fixture and clamp status in automated assembly cells
- Centralizing digital inputs for robotic loading stations
- Capturing pallet transfer sensor states in intralogistics systems
- Expanding existing NX racks during machine retrofit projects
Buying Checklist
- High input density lowers control panel footprint and wiring complexity
- Platform alignment with Sysmac reduces engineering friction
- Structured diagnostics speeds commissioning and service response
- Modular expansion protects future machine scaling plans
- Industrial-grade design supports long duty-cycle operation
Technical Specifications
| Model | NX-ID4342 |
|---|---|
| Series | NX |
| Type | Digital Input Unit |
| Input Points | 32 points |
| Input Voltage | DC24V |
| Input Current | 7mA typical |
| Response Time | 0-32ms (adjustable) |
| Common | 16 points/common, 2 circuits |
| Connection | Push-in terminals |
| Current Consumption | 150mA at 5VDC |
| Operating Temperature | 0 to +55°C |
| Mounting | DIN rail |
Frequently Asked Questions
What's the advantage of 32-point unit?
Higher density: 32 points in compact unit. More cost-effective per point.
How many commons does this unit have?
2 commons (16 points each). Allows grouping inputs by voltage source or function.
What's the power consumption?
150mA at 5VDC (internal). External: 7mA per input at 24VDC.
Can I adjust input response time?
Yes, response time (0-32ms) is set in Sysmac Studio.
