SKU: NX-OC2633

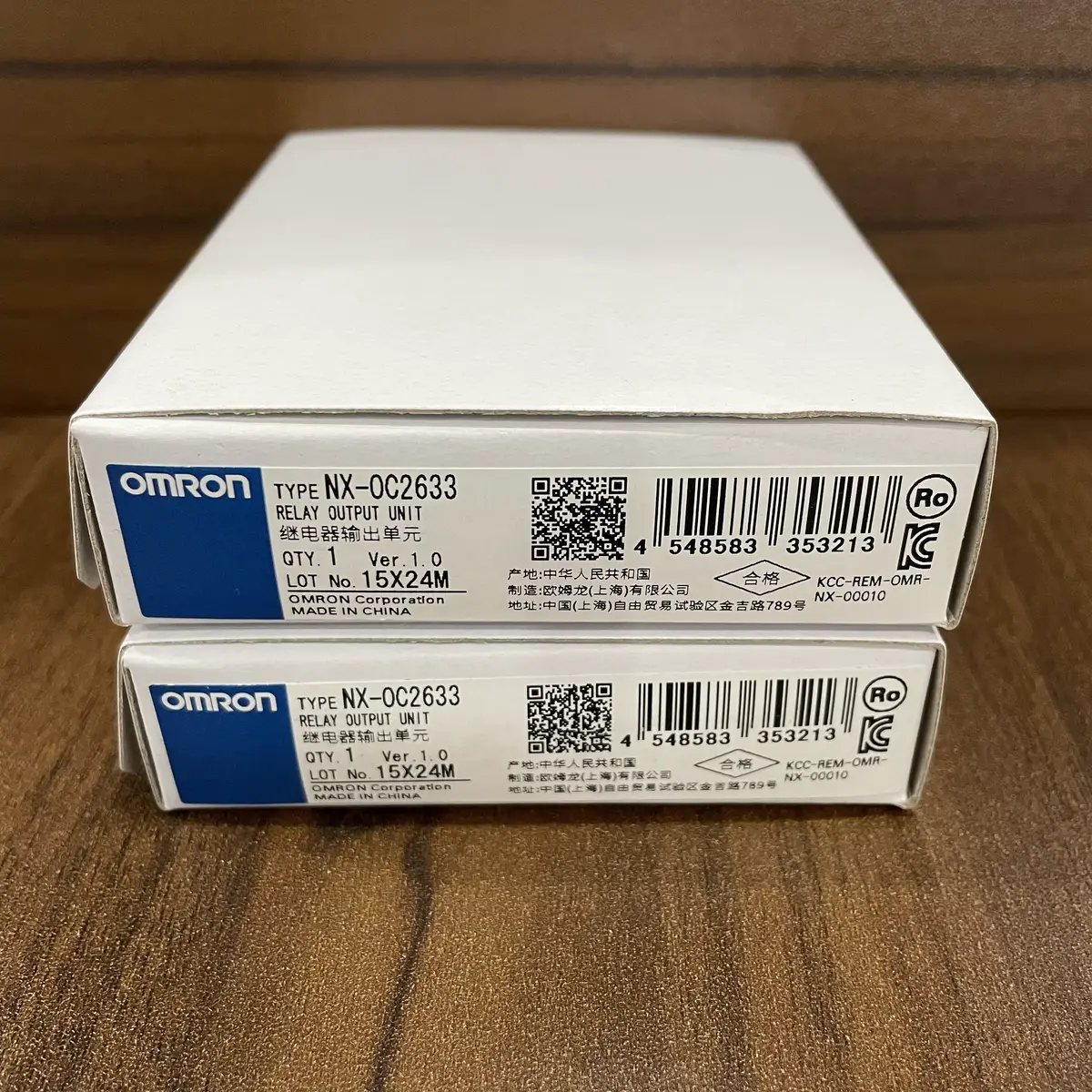

Omron NX-OC2633 Digital Output Unit Relay Output for NX Series
Omron NX-OC2633 is a relay output unit for NX series, providing relay output for versatile load switching.
USD 115.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Relay output architecture for flexible load interface handling
- Designed for NX modular automation system integration
- Suitable for discrete command control in industrial panels
- Supports scalable output expansion strategies
- Useful for mixed-voltage and varied control load environments
- Reliable operation in repetitive machine duty cycles
Relay-Based Digital Output Expansion for Flexible NX Machine Control
The NX-OC2633 provides relay output channels suited for mixed load types in control architectures where electrical isolation and compatibility are priorities. It integrates with modular NX systems to support scalable output expansion in machine applications. This unit is practical for OEM standardization and retrofit upgrades where reliable output behavior is required.
Typical Applications
- Switching relays and auxiliary loads in machine panels
- Expanding output channels in NX control racks
- Supporting mixed-load command outputs in OEM systems
- Retrofitting relay output capacity in existing lines
- Standardizing output module choices across machine families
- Improving control panel flexibility for varied interface requirements
Buying Checklist
- Relay outputs improve compatibility with mixed load types
- Strong fit for scalable modular NX expansion plans
- Useful for retrofit and legacy interface scenarios
- Supports maintainable panel design and service workflow
- Practical output option for broad industrial automation tasks
Technical Specifications
| Model | NX-OC2633 |
|---|---|
| Series | NX |
| Type | Digital Output Unit |
| Output Points | 16 points |
| Output Type | Relay (SPST-NO) |
| Contact Rating | 5A at 250VAC |
| Load Voltage | AC250V, DC30V |
| Response Time | 10ms |
| Connection | Push-in terminals |
| Current Consumption | 150mA at 5VDC |
| Operating Temperature | 0 to +55°C |
| Mounting | DIN rail |
Frequently Asked Questions
What's the advantage of relay output?
Can switch AC or DC loads, higher current capacity (5A), electrical isolation. Suitable for diverse load types.
What loads can this unit switch?
5A at 250VAC: contactors, solenoids, lamps. For higher current, use output to control external contactor.
What's the response time?
10ms (relay mechanical). Slower than transistor output but suitable for most applications.
Do I need external fuse?
Yes, external fusing recommended. Use 5A fast-blow fuse per output or per common group.
