Omron NX-OD6121-5 NX Series Digital Output Unit 12-Points 24VDC 0.5A

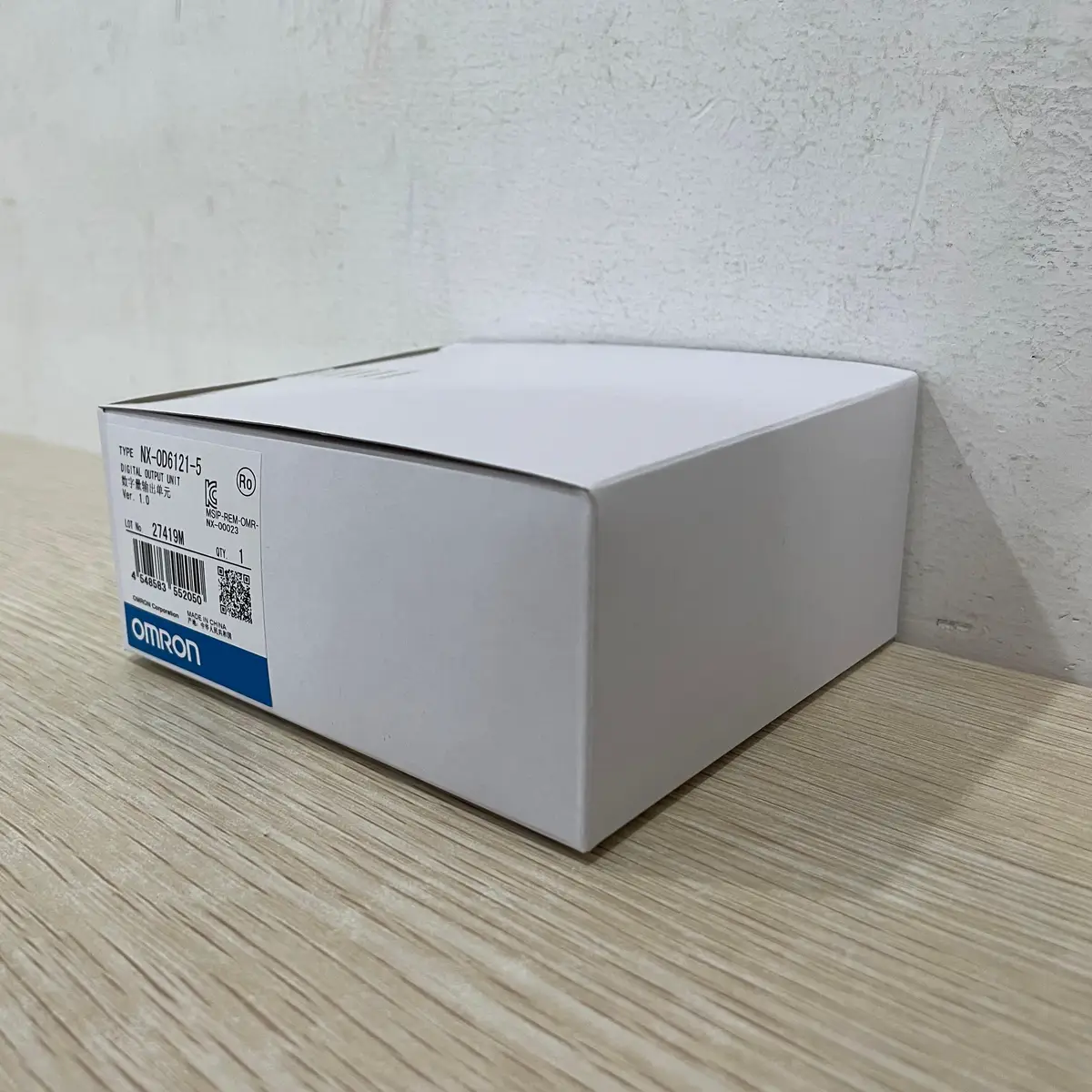

Omron NX-OD6121-5 Digital Output Module

The Omron NX-OD6121-5 is a digital output unit designed for NX series programmable logic controllers, providing reliable transistor output control for industrial automation applications. This module features 12 NPN transistor output channels, each rated at 0. 5A for driving DC loads such as solenoids, relays, indicator lights, and other control devices. The NX-OD6121-5 operates on 24VDC load voltage, compatible with standard industrial control systems. Each output channel includes individual LED status indicators for quick visual verification of output states during commissioning and troubleshooting. The module connects to field wiring through a 40-pin connector, providing organized connections for all output points. Built-in protection features include short circuit protection and overload protection, safeguarding both the module and connected field devices from damage. The NX series represents Omron next-generation PLC platform, offering enhanced performance, flexibility, and integration capabilities compared to earlier generations. The NX-OD6121-5 supports high-speed output switching with response times suitable for demanding control applications. Applications include solenoid valve control, indicator driving, relay actuation, alarm outputs, and general discrete output control in industrial automation systems.
