SKU: NX-OD4256

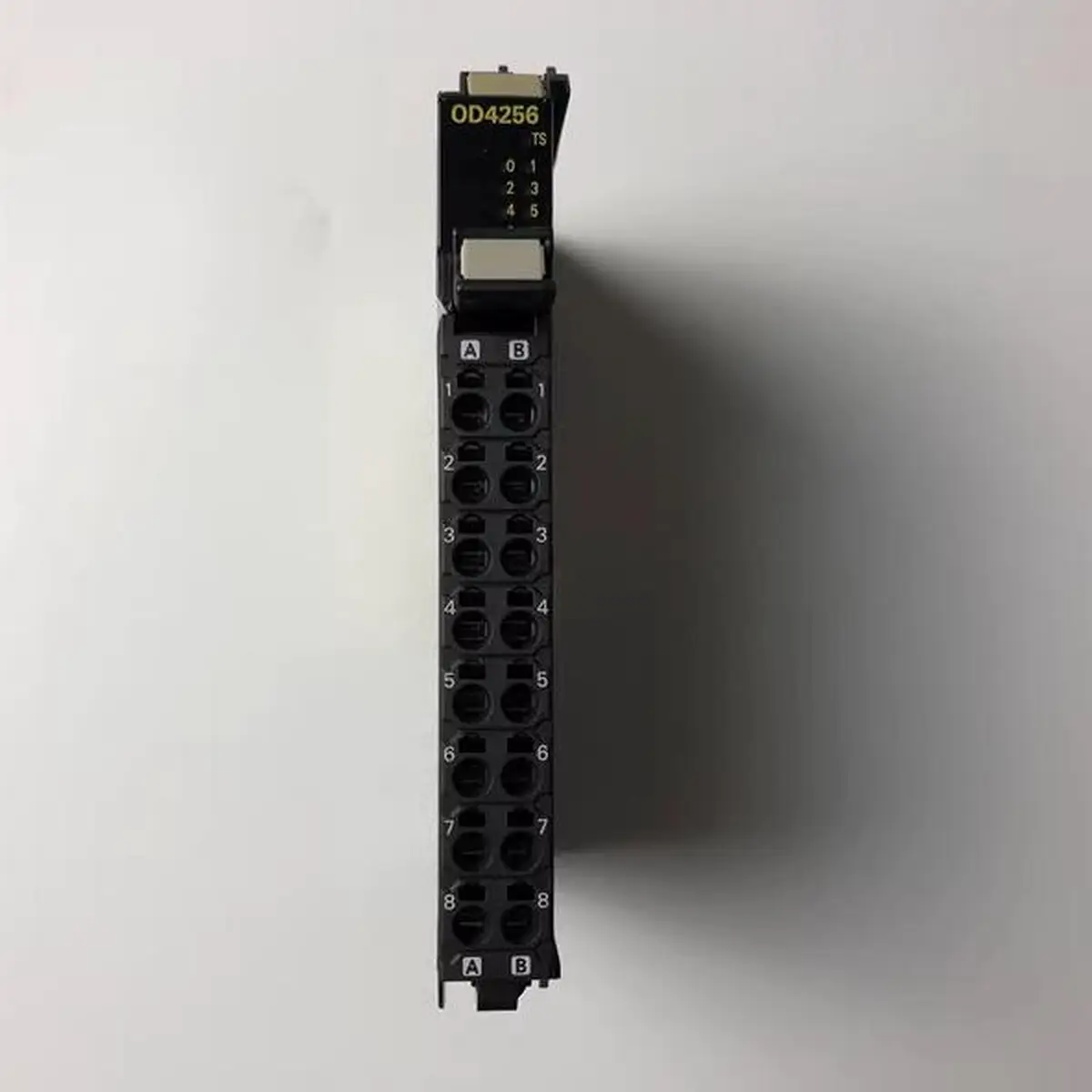

Omron NX-OD4256 Digital Output Module 24VDC for NX Automation
Omron NX-OD4256 is a digital output module for NX automation, providing 24VDC transistor output.
USD 47.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 24VDC digital output capability for NX modular systems
- Supports control of relays, valves, and status devices
- Designed for scalable Sysmac-based machine architectures
- Improves panel organization with modular output expansion
- Useful for both new installations and retrofit upgrades
- Helps standardize output design across OEM machine families
Scalable 24VDC Digital Output Control for NX Modular Systems
The NX-OD4256 provides robust digital output capability for machine builders using NX/Sysmac control platforms. It is suitable for actuator control, status signaling, and interlocked command sequences in packaging, handling, and assembly systems. Its modular design allows clean expansion over time while preserving panel organization and software-level diagnostics, which supports long-term serviceability and predictable commissioning workflows.
Typical Applications
- Commanding pneumatic valves in automation cells
- Driving relay interlocks and output interface boards
- Operating machine indicator and alarm outputs
- Expanding output channels in existing NX control racks
- Building standardized output layers in OEM platforms
- Adding output capacity during phased machine upgrades
Buying Checklist
- Reliable 24VDC output control for industrial automation
- Modular format supports future system growth
- Sysmac-native integration reduces commissioning complexity
- Strong fit for high-uptime machine applications
- Improves maintainability through structured I/O architecture
Technical Specifications
| Model | NX-OD4256 |
|---|---|
| Series | NX |
| Type | Digital Output Module |
| Output Points | 16 points |
| Output Type | NPN (sinking) |
| Output Current | 0.5A per point |
| Load Voltage | DC12-24V |
| Response Time | 0.5ms |
| Connection | Push-in terminals |
| Current Consumption | 150mA at 5VDC |
| Operating Temperature | 0 to +55°C |
| Mounting | DIN rail |
Frequently Asked Questions
What's the output current?
0.5A per point.
What's the response time?
0.5ms.
Do I need external fuse?
Yes, external fusing recommended.
Can I use this for high-speed output?
0.5ms response. For high-speed pulse output, use dedicated position control unit.
