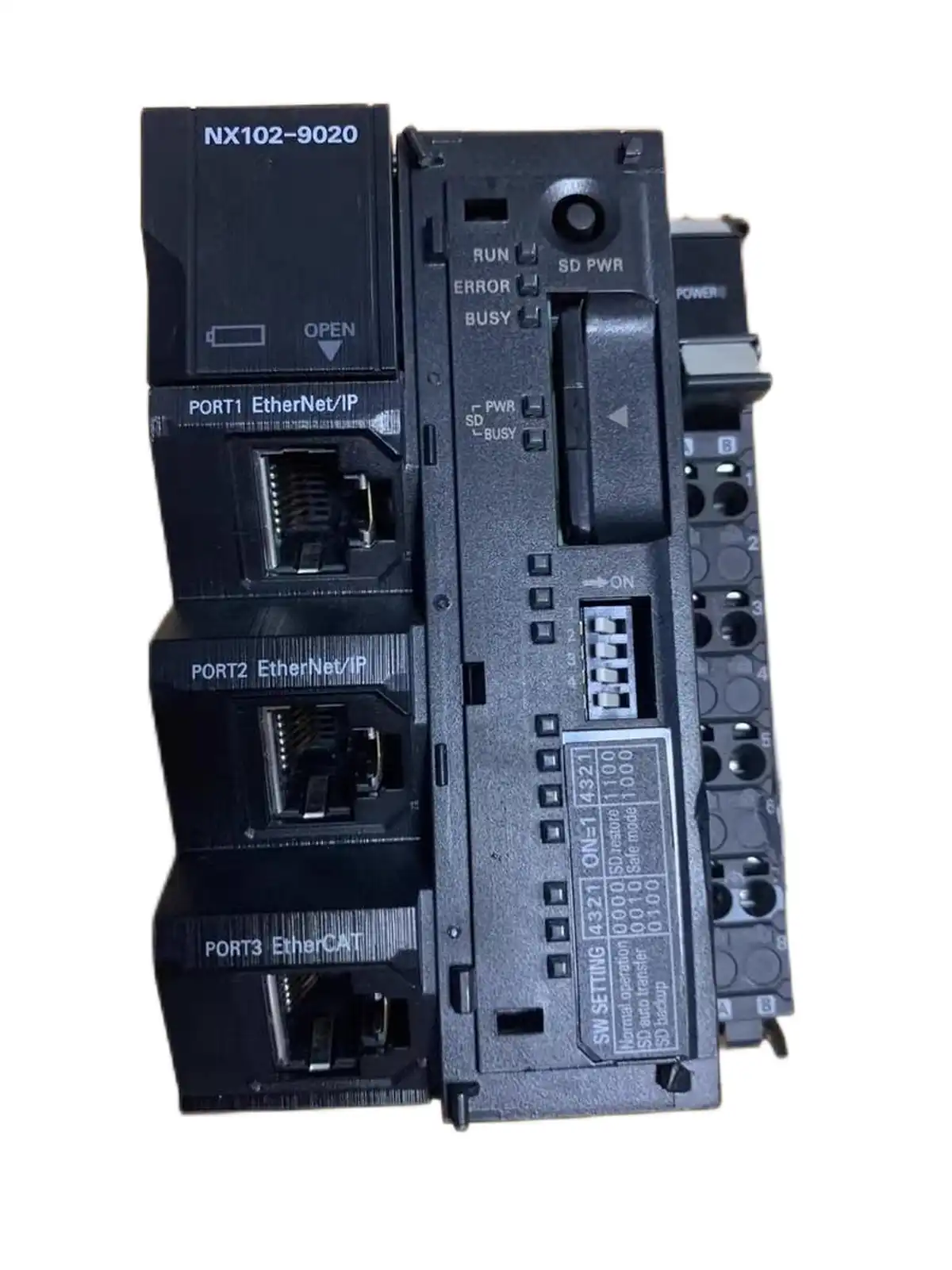

Omron NX102-9020 NX Series CPU Unit with EtherNet/IP
High-performance CPU unit with 5MB program capacity, dual-core processor, 2560 I/O points, built-in EtherNet/IP
USD 1180.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 5MB program capacity for complex applications
- Dual-core processor for high-speed execution
- 500 microsecond cycle time for real-time control
- Built-in EtherNet/IP for enterprise connectivity
- EtherCAT master supports up to 64 slaves
- Supports up to 2560 I/O points with remote expansion
- Integrated safety functionality with NX-FSI series
- SD card slot for program backup and data logging
Advanced Machine Automation Controller for High-Speed Applications
The Omron NX102-9020 is a powerful CPU unit from the NX Series machine automation controller line, designed for demanding applications requiring high-speed processing and extensive I/O connectivity. Featuring a dual-core processor and 5MB program capacity, the NX102 delivers exceptional performance with a cycle time as fast as 500 microseconds. Built-in EtherNet/IP connectivity enables seamless integration with enterprise networks and HMIs, while the EtherCAT master port supports connection to up to 64 EtherCAT slaves including remote I/O, servo drives, and vision systems. The NX102 is ideal for packaging machinery, assembly automation, textile equipment, and printing machines that require precise synchronization and high throughput. Programming is done via Sysmac Studio, providing an integrated development environment for logic, motion, and visualization.
Typical Applications
- High-speed packaging machinery requiring precise timing
- Assembly automation with multiple stations
- Textile manufacturing equipment
- Printing and converting machines
- semiconductor manufacturing
- Battery production equipment
- Solar panel manufacturing
Buying Checklist
- Verify program size requirements: 5MB supports complex applications
- Confirm EtherCAT node count does not exceed 64 devices
- Ensure Sysmac Studio license is available for programming
- Check power supply: 24VDC required with adequate current capacity
- Consider SD card for program storage and data logging needs
- Plan network architecture for EtherNet/IP connectivity
Technical Specifications
| Series | NX102 |
|---|---|
| Program Capacity | 5 MB |
| Data Memory | 2 MB (battery-backed) |
| Processor | Dual-core ARM Cortex |
| Cycle Time | 500 microseconds (minimum) |
| I/O Capacity | 2560 points (with remote I/O) |
| Built-in Communication | EtherNet/IP, EtherCAT |
| EtherCAT Slaves | Up to 64 devices |
| Programming Software | Sysmac Studio |
| Power Supply | 24 VDC |
| Operating Temperature | 0C to 55C |
| Dimensions | Compact DIN rail mount |
| Certifications | UL, CE, C-Tick |
Frequently Asked Questions
What is the difference between NX102 and NX1P2 models?
The NX102 is a CPU unit requiring external power supply and I/O modules, while the NX1P2 is an all-in-one compact controller with built-in I/O. Choose NX102 for applications requiring more I/O flexibility and higher program capacity.
How many EtherCAT devices can be connected?
The NX102 supports up to 64 EtherCAT slave devices including remote I/O, servo drives, and fieldbus couplers. This provides significant expansion capability for complex machines.
Does NX102 support motion control?
Yes, the NX102 supports coordinated motion control through EtherCAT. It can control multiple servo axes with synchronized motion. The exact axis count depends on the motion complexity and cycle time requirements.
Can I use existing CJ series I/O with NX102?
Yes, using the NX-ECC202 EtherCAT Coupler, you can connect CJ series I/O units to the NX102 system, enabling migration and hybrid architectures.
