SKU: NX1P2-1040DT

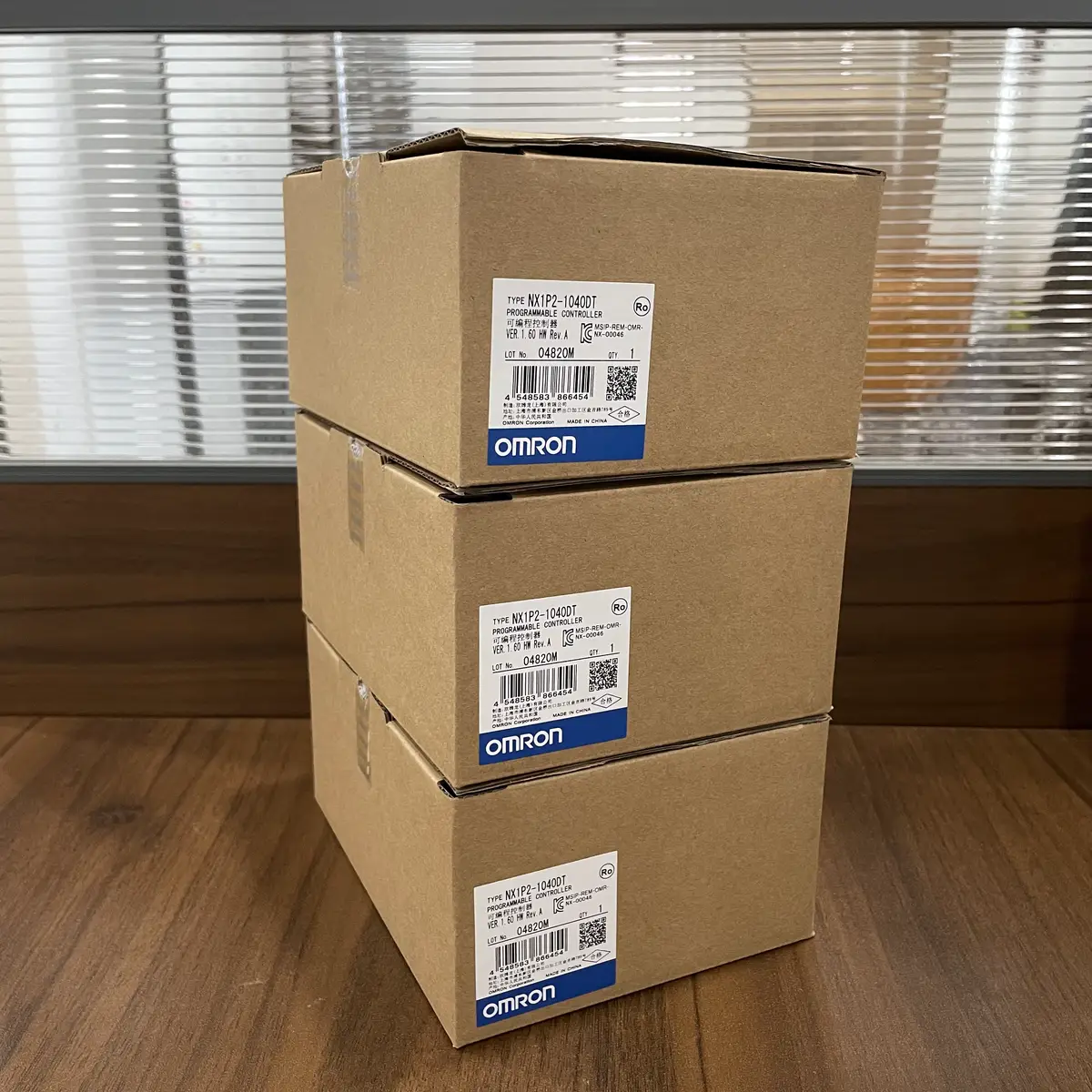

Omron NX1P2-1040DT NX Series Compact PLC with 40 I/O Points
Omron NX1P2-1040DT is an NX1P2 series compact PLC with 40 I/O points, EtherCAT connectivity for high-speed machine automation.
USD 355.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 40 built-in I/O points (24 inputs, 16 PNP outputs)
- Dual Ethernet ports: EtherCAT master and EtherNet/IP adapter
- Built-in motion control for up to 2 servo axes
- High-speed processing with 1ns instruction execution
- Compact design maximizes panel space efficiency
- 1.5MB program memory for complex logic
- Supports up to 2560 I/O points with remote expansion
- Built-in cybersecurity features
High-I/O Compact Controller for Advanced Automation
The Omron NX1P2-1040DT is a compact yet powerful PLC from the NX1P series, offering 40 built-in I/O points for applications requiring more direct connectivity without remote I/O. This controller features 24 digital inputs and 16 PNP transistor outputs, providing a higher I/O count than the NX1P2-9024DT model. Like other NX1P controllers, it includes dual Ethernet ports supporting EtherCAT for motion control and EtherNet/IP for enterprise connectivity. The built-in EtherCAT master can control up to 2 servo axes directly, making it suitable for compact machines with simple motion requirements. With 1. 5MB program memory and high-speed instruction execution, the NX1P2-1040DT delivers reliable performance for packaging, assembly, and material handling applications.
Typical Applications
- Packaging machines with moderate I/O requirements
- Compact assembly systems with motion control
- Conveyor control with localized I/O
- Small to medium material handling systems
- Food processing equipment
- Automated guided vehicle control
Buying Checklist
- Ideal when 24-40 direct I/O points are required
- Verify PNP output compatibility with your actuators
- For motion control, confirm 2 axes is sufficient
- Ensure Sysmac Studio is available for commissioning
- Check panel space for DIN rail mounting
Technical Specifications
| Model | NX1P2-1040DT |
|---|---|
| Series | NX1P2 |
| Type | Compact PLC Controller |
| Total I/O Points | 40 points (24 input, 16 output) |
| Output Type | Transistor (NPN) |
| EtherCAT Ports | 2 ports (100 Mbps) |
| Ethernet Ports | 1 port (10/100 Mbps) |
| USB Ports | 1 port (device) |
| Program Capacity | 20K steps |
| Motion Axes | 4 axes (via EtherCAT) |
| Supply Voltage | DC24V |
| Operating Temperature | 0 to +55°C |
| Software | Sysmac Studio |
| Mounting | DIN rail |
Frequently Asked Questions
What's the advantage of NX1P2 series?
Compact controller with integrated EtherCAT. Combines PLC logic and motion control in one unit. Cost-effective alternative to NJ series for smaller applications.
How many axes can this controller control?
4 motion axes via EtherCAT. Connect R88D servo drives or third-party EtherCAT servo drives. Suitable for multi-axis positioning applications.
Can I expand I/O?
Yes, via EtherCAT. Connect NX series I/O couplers for additional I/O. Up to 64 NX units per EtherCAT network.
What programming software is required?
Sysmac Studio: single environment for PLC programming, motion configuration, HMI design. Same software for NJ/NX series.
