SKU: NX1P2-1040DT1

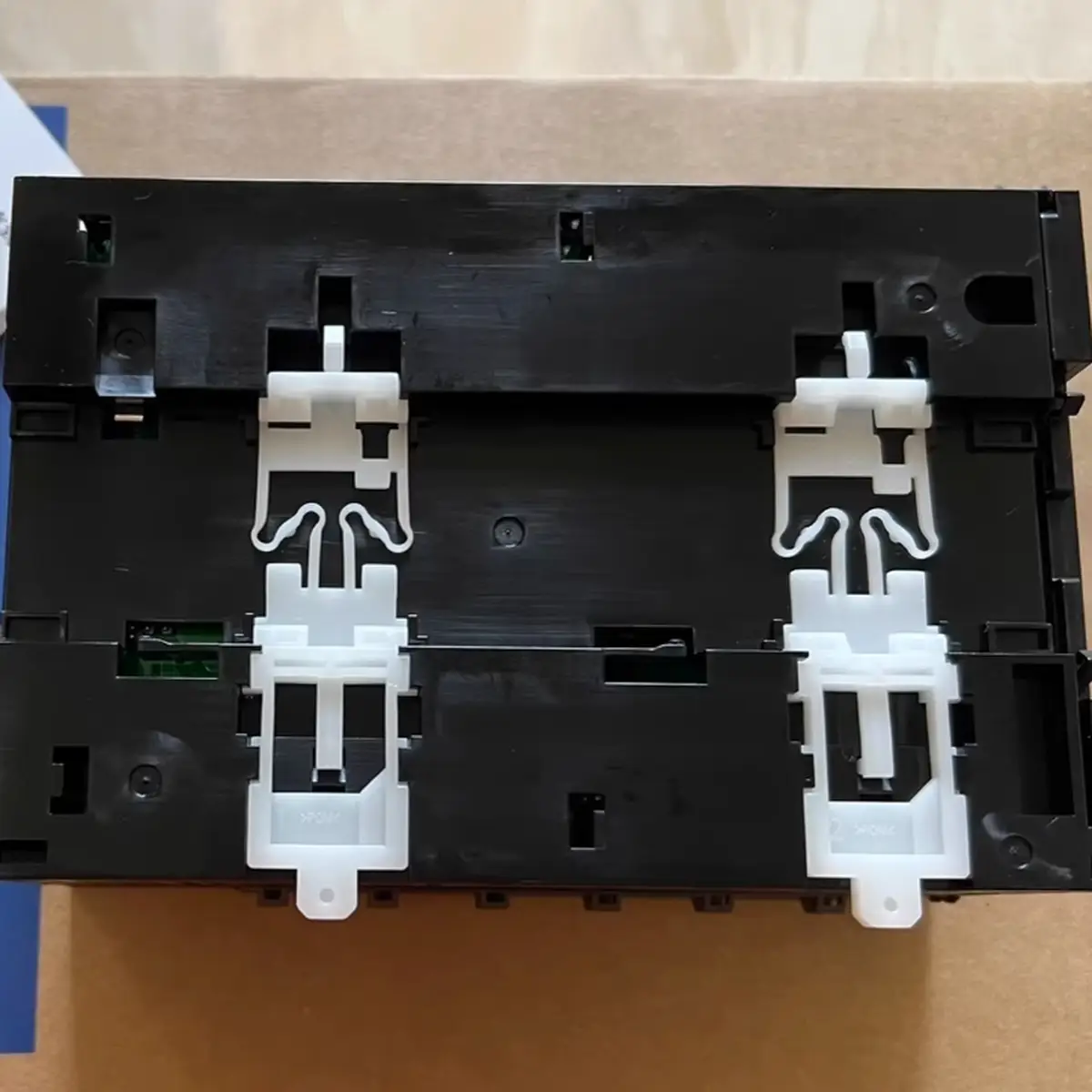

Omron NX1P2-1040DT1 NX Series Compact Controller 40 I/O PNP
Omron NX1P2-1040DT1 is an NX1P2 series compact PLC with 40 I/O points, PNP transistor output, EtherCAT connectivity.
USD 545.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 40 built-in I/O points
- EtherCAT master for motion and remote I/O
- EtherNet/IP for network connectivity
- 1.5MB program memory
- Compact DIN rail mount design
- High-speed instruction execution
- Supports remote I/O expansion
- Cybersecurity features included
Compact Controller Variant for Specific I/O Requirements
The Omron NX1P2-1040DT1 is a variant of the NX1P2-1040DT compact controller, designed for applications requiring specific output configurations. This model offers the same core capabilities as the DT variant: 24 digital inputs and 16 digital outputs with EtherCAT and EtherNet/IP connectivity. The DT1 suffix indicates a specific output configuration or connector type that differs from the standard DT model. All other specifications remain consistent with the NX1P2-1040DT platform, including 1. 5MB program memory, high-speed processing, and integrated motion control capabilities. Suitable for packaging, assembly, and material handling applications where the specific DT1 configuration matches existing panel designs or output requirements.
Typical Applications
- Packaging machinery
- Assembly automation
- Conveyor systems
- Material handling
- Small machine control
Buying Checklist
- Verify output type matches existing installation
- Confirm EtherCAT axis requirements
- Ensure software compatibility
Technical Specifications
| Model | NX1P2-1040DT1 |
|---|---|
| Series | NX1P2 |
| Total I/O Points | 40 points |
| Output Type | Transistor (PNP) |
| EtherCAT Ports | 2 ports |
| Ethernet Ports | 1 port |
| Program Capacity | 20K steps |
| Motion Axes | 4 axes |
| Supply Voltage | DC24V |
| Operating Temperature | 0 to +55°C |
| Software | Sysmac Studio |
Frequently Asked Questions
What's the difference between DT and DT1?
DT: NPN output (sinking). DT1: PNP output (sourcing). Same EtherCAT, same motion control. Choose based on load wiring requirements.
Can this controller connect to HMIs?
Yes, via Ethernet port. Compatible with Omron NA/NB/NS series HMIs. Also supports third-party HMIs via Modbus TCP.
What motion control functions are available?
Position control, speed control, electronic gear, cam control. Programmed via motion instructions in Sysmac Studio.
Is this controller suitable for small machines?
Yes, ideal for compact machines requiring motion control. Integrated EtherCAT eliminates need for separate motion controller.
