SKU: NX1P2-1140DT

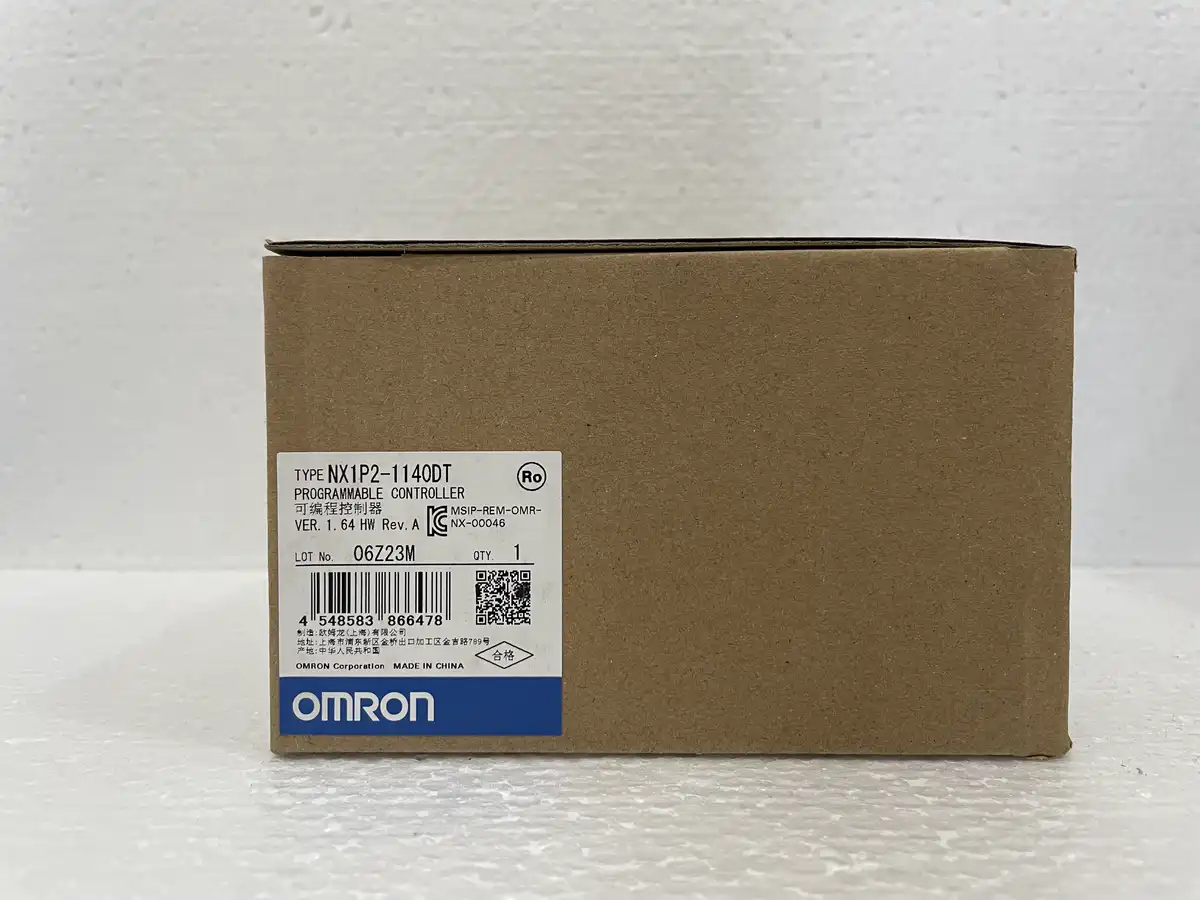

Omron NX1P2-1140DT NX Series PLC with 40 I/O Points Enhanced
Omron NX1P2-1140DT is an enhanced NX1P2 series compact PLC with 40 I/O points, EtherCAT connectivity for advanced machine automation.
USD 355.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 24 digital inputs and 16 NPN transistor outputs for expanded direct I/O
- Dual Ethernet ports: EtherCAT master and EtherNet/IP adapter
- High-speed instruction processing for time-critical applications
- Integrated motion control for up to 128 synchronized axes
- Compact design maximizes I/O density per panel space
- Cybersecurity features including user authentication
- Wide temperature tolerance for harsh environments
- Compatible with full NX series expansion modules
Expanded I/O Capacity for Demanding Automation Applications
The Omron NX1P2-1140DT builds on the NX1P platform with expanded I/O capacity, featuring 24 digital inputs and 16 NPN transistor outputs. This makes it ideal for medium-complexity machines requiring more direct I/O connections without remote expansion. Like its smaller sibling, it includes dual Ethernet ports for EtherCAT and EtherNet/IP communication, enabling integration with drives, HMIs, and plant networks. The high-speed processor executes logic and motion control tasks with nanosecond precision, while the compact form factor minimizes panel space. Perfect for applications in packaging, material handling, and assembly automation where reliability and performance are critical.
Typical Applications
- Medium-size packaging machines with multiple stations
- Assembly automation with numerous sensors and actuators
- Conveyor systems requiring distributed control
- Textile machinery with complex sequencing
- Printing and converting equipment
- Automotive component manufacturing
Buying Checklist
- Ideal for applications needing 20-40 direct I/O points without remote I/O
- Verify voltage requirements: 24VDC input/output compatibility
- Plan panel layout for adequate heat dissipation
- Ensure EtherCAT network configuration matches drive requirements
- Consider future expansion needs when selecting I/O count
Technical Specifications
| Model | NX1P2-1140DT |
|---|---|
| Series | NX1P2 |
| Total I/O Points | 40 points |
| Output Type | Transistor (NPN) |
| EtherCAT Ports | 2 ports |
| Ethernet Ports | 1 port |
| Program Capacity | 40K steps |
| Motion Axes | 8 axes |
| Supply Voltage | DC24V |
| Operating Temperature | 0 to +55°C |
| Software | Sysmac Studio |
Frequently Asked Questions
What's the difference between NX1P2-1040 and NX1P2-1140?
NX1P2-1140: more program capacity (40K vs 20K), more motion axes (8 vs 4), faster processing. Choose 1140 for more complex applications.
Can this controller handle complex motion?
Yes, 8-axis motion control with interpolation, electronic cam, gear synchronization. Suitable for complex multi-axis machines.
What's the cycle time?
Typical: 1-2ms for logic, 0.5ms for motion. Depends on program size and axis count. Fast enough for most machine automation.
Can I add safety functions?
Yes, via NX-SL series safety I/O. Connect safety I/O via EtherCAT. Achieve Category 3/PL d safety rating.
