SKU: P7SA-10F-ND

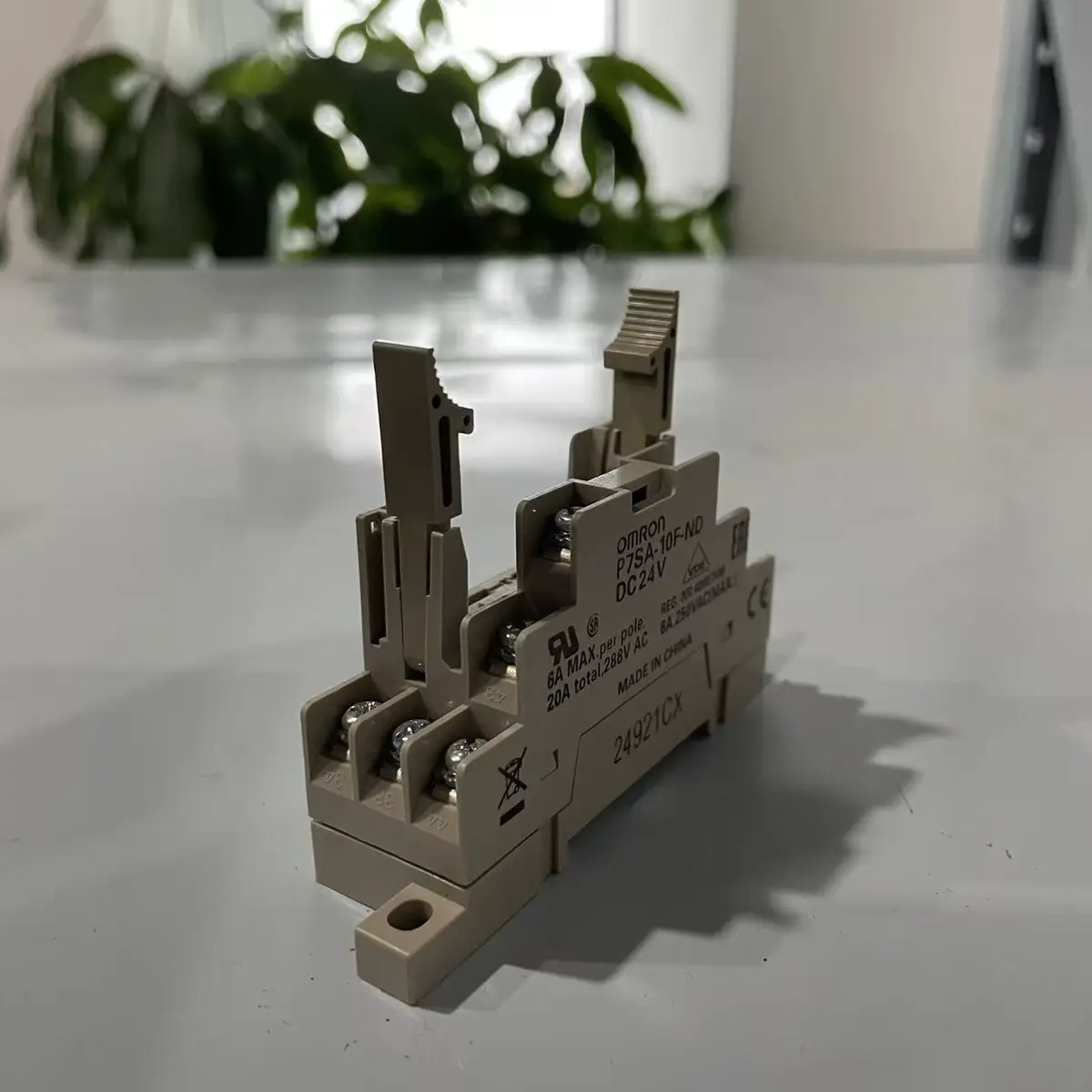

Omron P7SA-10F-ND Safety Relay Module for Emergency Stop
Omron P7SA-10F-ND is a safety relay module for emergency stop and safety gate monitoring with 3NC safety outputs.
USD 10.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Designed for safety relay mounting in machine safety circuits
- DIN rail installation for organized panel assembly
- 24VDC-oriented system compatibility for common safety controls
- Supports quicker relay replacement and maintenance procedures
- Improves wiring clarity in safety control architectures
- Suitable for OEM and retrofit safety panel standards
Safety Relay Socket Platform for Serviceable Panel Integration
The P7SA-10F-ND supports stable installation of safety relays in machine safety control cabinets. Its DIN rail mounting and practical terminal arrangement help reduce service time during relay replacement or diagnostics. This socket is suitable for OEM and plant safety panels where maintainability, wiring clarity, and dependable relay retention are critical for uptime and compliance workflows.
Typical Applications
- Mounting safety relays in machine guard circuits
- Building emergency stop safety control panels
- Standardizing relay socket hardware in OEM safety systems
- Replacing worn sockets during safety panel maintenance
- Supporting modular safety control architecture upgrades
- Improving wiring organization in compliance-driven machinery
Buying Checklist
- Improves safety relay serviceability and replacement speed
- DIN rail format simplifies panel build standardization
- Supports cleaner and more maintainable safety wiring
- Reliable socket platform for long-term safety operations
- Practical spare-part strategy for safety panel upkeep
Technical Specifications
| Model | P7SA-10F-ND |
|---|---|
| Series | P7SA |
| Type | Safety Relay Module |
| Safety Inputs | 2 channels (E-stop, gate switch) |
| Safety Outputs | 3NC (forced guided) |
| Auxiliary Output | 1NO (monitoring) |
| Supply Voltage | AC/DC24V |
| Safety Category | Category 4, PL e |
| SIL | SIL 3 |
| Response Time | 25ms max |
| Mounting | DIN rail (22.5mm width) |
| LED Indicators | Power, Input, Output status |
| Manual Reset | Yes |
| Operating Temperature | -10 to +55°C |
| Certifications | CE, TUV, UL, CSA |
Frequently Asked Questions
What's the difference between P7SA and G7SA?
P7SA: complete safety relay module with internal monitoring, achieves Category 4/PL e. G7SA: individual safety relay (component), requires external monitoring for Cat 4. P7SA is plug-and-play safety solution.
How do I wire emergency stop to P7SA?
Wire E-stop NC contacts to S11-S12 and S21-S22 (dual channel). Wire safety outputs (13-14, 23-24, 33-34) in series with machine contactor coil. Wire monitoring output to PLC for status. Press reset after E-stop release.
What does Category 4, PL e mean?
Highest safety rating per ISO 13849-1. Category 4: fault-tolerant design (single fault doesn't lose safety function). PL e: highest performance level. Required for high-risk machinery (presses, robots, centrifuges).
Why dual-channel input?
Dual-channel (redundant) wiring detects faults: wire break, short circuit, contact weld. If channels disagree, module locks out and requires reset. Ensures safety function integrity.
Can I monitor multiple safety devices?
Yes, wire multiple E-stops or gate switches in series on each channel. All devices must be NC contacts. Total resistance of safety circuit should not exceed specified limit.
