SKU: Z-15GW22-B

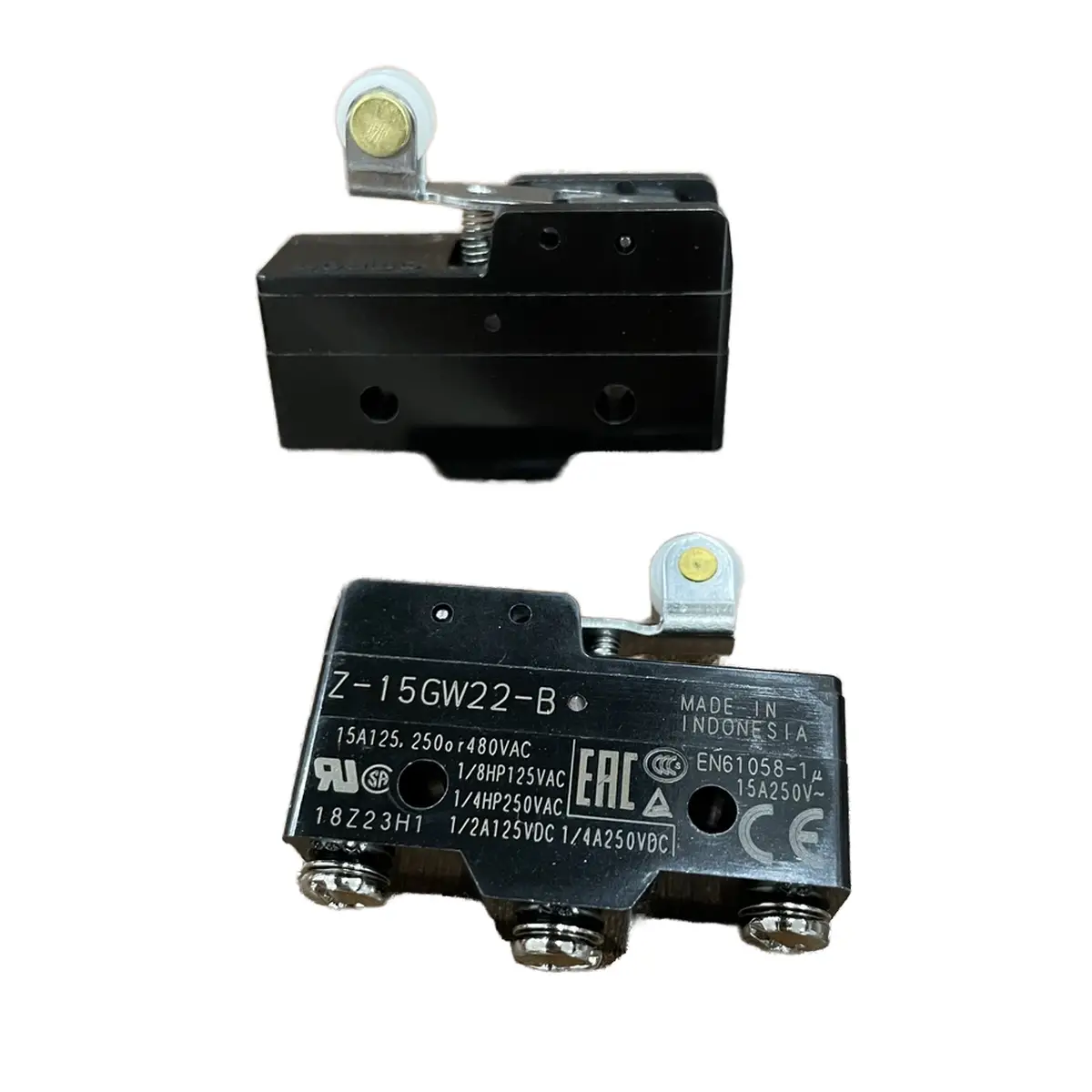

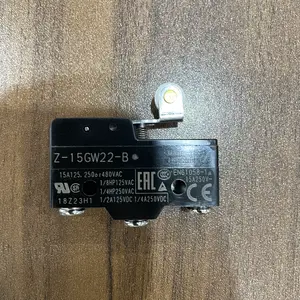

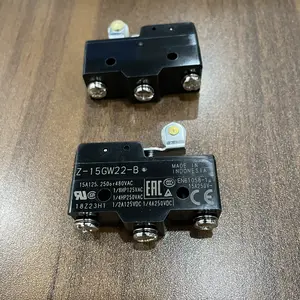

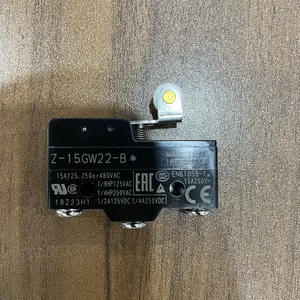

Omron Z-15GW22-B Limit Switch SPDT Ball Short Swing Bar
SPDT limit switch with ball short swing bar actuator for compact mechanisms.
USD 2.50 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- SPDT contact arrangement for versatile control circuit use
- Ball short swing bar actuator for compact mechanical interaction
- Suitable for limit and interlock position sensing tasks
- Reliable switching behavior in repetitive industrial duty
- Practical integration in machine and panel assemblies
- Useful maintenance replacement for established switch points
Mechanical Position Feedback with Short Swing Actuation Reliability
The Z-15GW22-B provides repeatable mechanical switching where moving parts need clear position feedback to control logic. Its short swing bar actuator is suitable for compact travel paths and cam-driven mechanisms. This switch is commonly used in machine sequencing and interlock feedback tasks requiring durable operation under repetitive motion.
Typical Applications
- Detecting axis travel limits in compact mechanisms
- Providing mechanical trigger input for sequence logic
- Monitoring cam-driven motion endpoints
- Replacing worn swing-bar switch assemblies
- Standardizing mechanical feedback in OEM designs
- Improving reliability of hardwired position signals
Buying Checklist
- Compact actuator style suits limited mechanical travel
- SPDT flexibility supports varied control logic designs
- Reliable for repetitive switching in industrial machines
- Cost-effective component for position feedback tasks
- Practical spare for common limit switch maintenance
Technical Specifications
| Model | Z-15GW22-B |
|---|---|
| Series | Z |
| Type | Basic Switch / Limit Switch |
| Contact Form | SPDT (1 Form C) |
| Contact Rating | 15A at 250VAC |
| Actuator Type | Ball Short Swing Bar |
| Operating Force | 1.47N max |
| Release Force | 0.49N min |
| Travel | OT: 3mm, PT: 1mm |
| Mechanical Life | 10 million operations |
| Electrical Life | 50,000 operations |
| Operating Temperature | -25 to +80°C |
| Protection | IP00 |
Frequently Asked Questions
What is the advantage of a swing bar actuator?
Swing bar actuators accommodate misalignment and provide smooth operation with cams. The ball tip reduces friction and wear.
What is the operating angle for this actuator?
The short swing bar operates through approximately 30 degrees of rotation. Refer to the datasheet for detailed operating characteristics.
Can I replace the actuator?
No, the actuator is integral to the switch. If the actuator is damaged, replace the entire switch.
What mounting orientation is recommended?
Mount so the actuator swings in the direction of cam travel. Avoid mounting where the actuator could be over-traveled beyond its mechanical limit.
