SKU: Z-15GW22A55-B5V

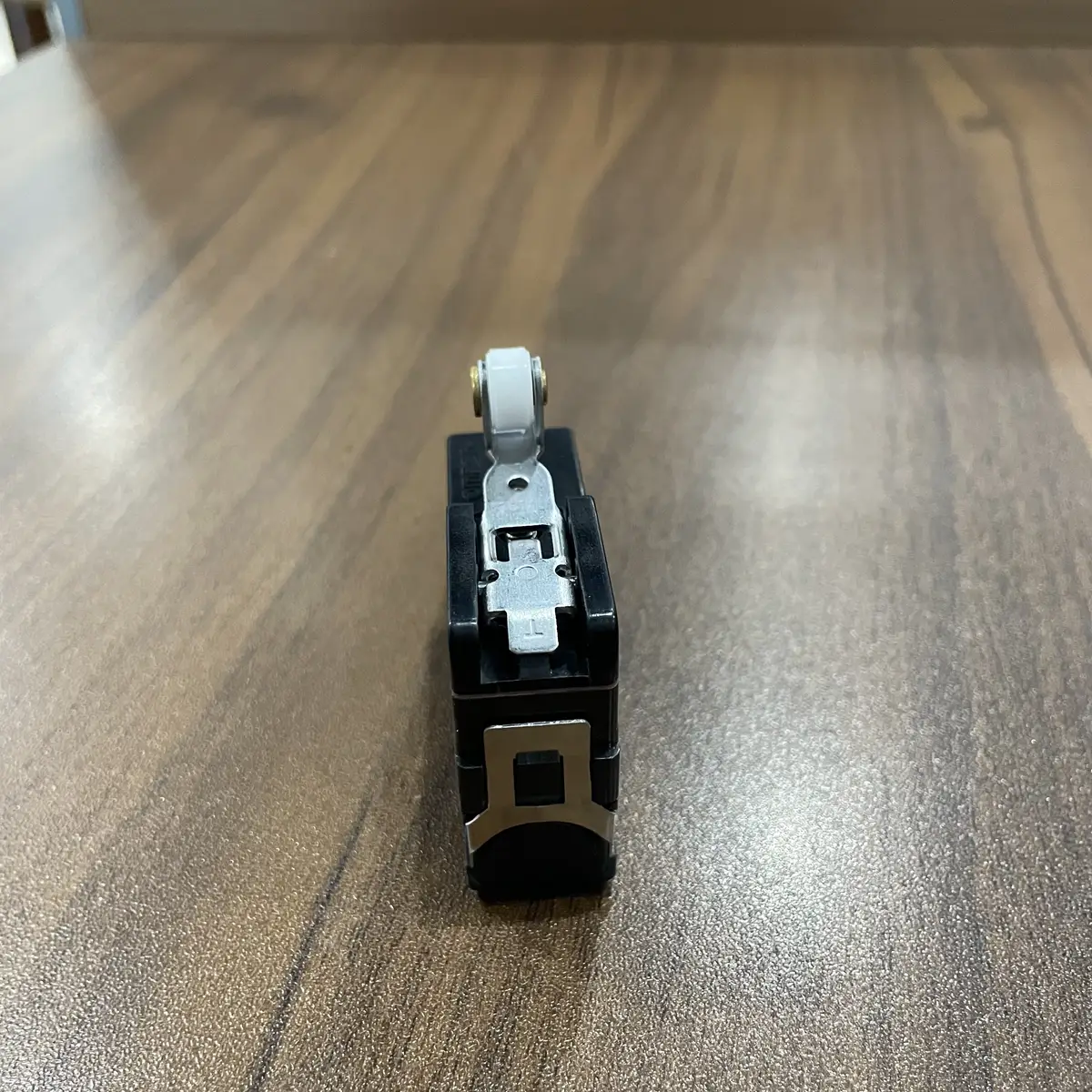

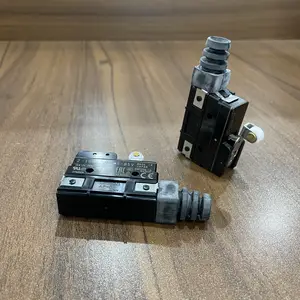

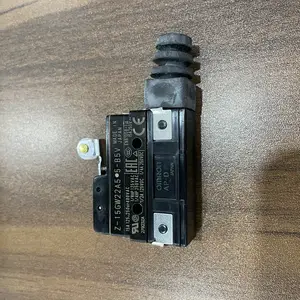

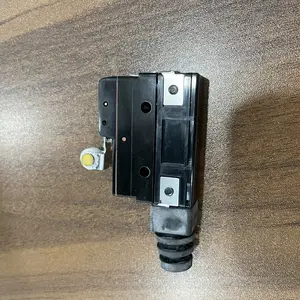

Omron Z-15GW22A55-B5V Limit Switch SPDT Roller Lever
SPDT limit switch with roller lever actuator, 15A rating.
USD 11.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Roller lever actuation for flexible mechanical engagement
- 15A class switching for heavy-duty control applications
- Reliable snap-action contact behavior
- Suitable for interlock and limit detection duties
- Practical installation in machine and panel assemblies
- Durable option for repetitive industrial operation
Heavy-Duty Roller Lever Position Switching for Industrial Mechanisms
The Z-15GW22A55-B5V is used for robust mechanical event detection where moving cams or machine parts actuate a roller lever. It is suitable for interlock feedback, travel limits, and sequence triggering in repetitive operation. This switch provides dependable snap-action performance for OEM equipment and maintenance replacements in demanding environments.
Typical Applications
- Detecting end-of-travel positions in machine motion
- Providing interlock signals in guard circuits
- Triggering sequencing events from cam movement
- Replacing worn heavy-duty micro switches
- Standardizing lever-switch hardware in OEM builds
- Improving reliability of mechanical feedback points
Buying Checklist
- Heavy-duty class supports demanding applications
- Roller lever design eases mechanical integration
- Reliable switching for high-cycle machine operation
- Practical maintenance spare across many systems
- Cost-effective durable component for limit detection
Technical Specifications
| Model | Z-15GW22A55-B5V |
|---|---|
| Series | Z |
| Type | Basic Switch / Limit Switch |
| Contact Form | SPDT (1 Form C) |
| Contact Rating | 15A at 250VAC |
| Actuator Type | Roller Lever |
| Operating Force | 1.96N max |
| Release Force | 0.49N min |
| Travel | OT: 3mm, PT: 1mm |
| Mechanical Life | 10 million operations |
| Electrical Life | 50,000 operations |
| Operating Temperature | -25 to +80°C |
| Protection | IP00 |
Frequently Asked Questions
What is the roller diameter?
The roller diameter is 12mm, suitable for standard cam profiles.
Can this switch handle high cycle applications?
Yes, with 10 million mechanical operations life, this switch is suitable for high-cycle applications. Reduce switching frequency for inductive loads.
What is the difference between this and Z-15GW2-B?
Both have roller lever actuators, but the operating characteristics and dimensions differ slightly. Check the datasheets for specific operating force and travel values.
Is this switch suitable for outdoor use?
No, this switch has IP00 protection. For outdoor or washdown applications, use switches with IP67 rating.
