SKU: CP1E-N30DT-D

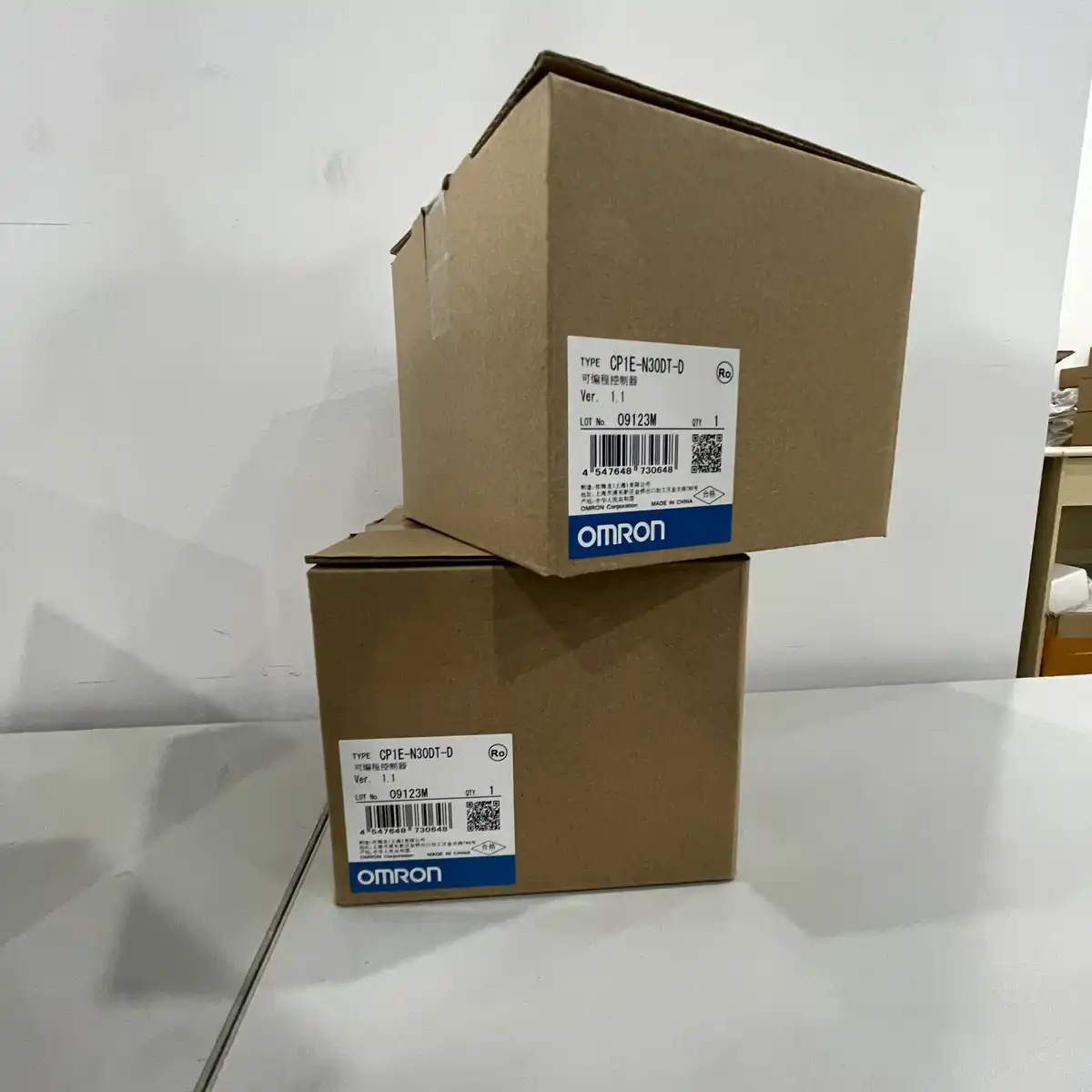

Omron CP1E-N30DT-D CP1E Series PLC CPU Unit 30 I/O Transistor
Omron CP1E-N30DT-D is a CP1E-N series compact PLC with 30 total I/O points, transistor output, DC power for small machine automation.
USD 132.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 30 I/O points (18 inputs, 12 outputs)
- Transistor outputs for reliable switching
- Built-in RS-485 for Modbus RTU communication
- Compact and economical design
- High-speed counter inputs
- Pulse output capability
- Easy programming with CX-Programmer
- Expandable with CP1W I/O modules
Cost-Effective Controller for Basic Automation
The Omron CP1E-N30DT-D is an economical CPU unit from the CP1E series, designed for small to medium automation applications requiring reliable control at an affordable price. This model features 18 digital inputs and 12 transistor outputs, providing 30 total I/O points. The N-type variant includes advanced features such as built-in RS-485 communication for Modbus RTU connectivity, making it ideal for integration with HMIs, inverters, and temperature controllers. The CP1E series is known for its ease of use, compact design, and excellent value for money. Programming is done via CX-Programmer, Omron widely-used PLC programming software.
Typical Applications
- Small packaging machines
- Simple conveyor systems
- HVAC control
- Pump and motor control
- Lighting control
- Temperature controller integration
- Simple assembly automation
Buying Checklist
- Best value for applications not requiring advanced features
- Verify output type (transistor) matches actuators
- Check RS-485 for Modbus connectivity needs
- Confirm program capacity (2K steps) sufficient
Technical Specifications
| Model | CP1E-N30DT-D |
|---|---|
| Series | CP1E-N |
| Type | Compact PLC CPU Unit |
| Total I/O Points | 30 points (18 input, 12 output) |
| Input Points | 18 digital inputs (24VDC) |
| Output Points | 12 transistor outputs (NPN) |
| Output Type | Transistor (NPN sinking) |
| Power Supply | DC24V |
| Program Capacity | 5K steps |
| Data Memory | 2.5K words |
| High-Speed Counter | 100kHz 1-axis |
| Pulse Output | 100kHz 1-axis |
| Expansion | Up to 3 expansion units |
| Option Boards | 1 option board slot |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
What's the advantage of transistor output?
Transistor output: faster response (0.5ms vs 10ms relay), longer life (no contacts), silent operation, suitable for PWM. Choose for high-speed or high-cycle applications.
Can I expand this PLC?
Yes, CP1E-N supports up to 3 expansion units: digital I/O, analog I/O, temperature input. Also supports 1 option board (RS-485, RS-232C).
What option boards are available?
CP1W-CIF11 (RS-485), CP1W-CIF12 (isolated RS-485), CP1W-CIF01 (RS-232C). Add serial communication for Modbus, HMI, barcode reader connection.
Can this PLC control stepper motors?
Yes, 100kHz pulse output for stepper motor control. Use pulse/direction signals. Suitable for single-axis positioning applications.
