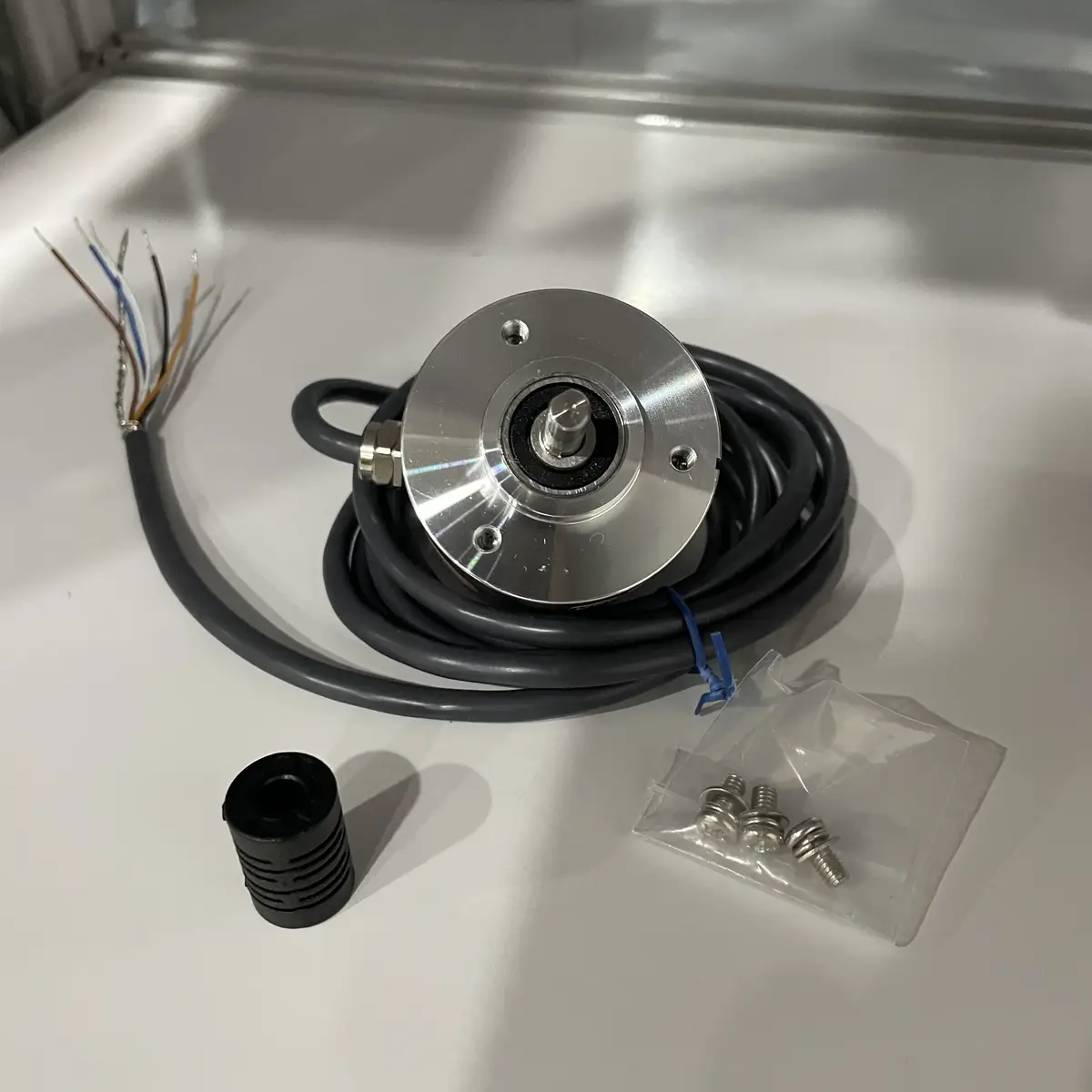

Omron E6C2-CWZ5B 100P-R Rotary Encoder 100P/R DC5-24V Voltage Output Φ50mm
Omron E6C2-CWZ5B 100P-R is a Φ50mm incremental rotary encoder with 100 PPR resolution, DC5-24V supply, voltage output (complementary) for noise-resistant position and speed feedback in industrial automation.
USD 37.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 100 PPR incremental output for speed/position feedback
- Suitable for motor control and motion monitoring tasks
- Reliable pulse signal generation in industrial environments
- Supports stable integration with PLC and drive systems
- Practical encoder class for broad automation applications
- Useful replacement for established feedback architectures
Incremental Encoder Feedback for Accurate Speed and Position Monitoring
The E6C2-CWZ5B 100P-R provides rotational pulse feedback for motion systems requiring dependable speed measurement and positional tracking. It is suitable for conveyors, drives, and automation equipment where control quality depends on accurate encoder signals. This encoder is widely used in industrial settings as a practical balance of resolution, durability, and maintainability.
Typical Applications
- Measuring motor speed in conveyor drives
- Providing position feedback to control systems
- Tracking shaft rotation in machine mechanisms
- Replacing worn encoders in retrofit maintenance
- Supporting closed-loop motion performance improvements
- Standardizing encoder feedback in OEM platforms
Buying Checklist
- Reliable incremental feedback for practical control needs
- 100 PPR suits many standard speed monitoring tasks
- Strong fit for industrial drive and motion systems
- Practical maintenance replacement in installed fleets
- Cost-effective encoder option for broad automation use
Technical Specifications
| Model | E6C2-CWZ5B 100P-R |
|---|---|
| Series | E6C2-C |
| Type | Incremental Rotary Encoder |
| Body Diameter | Φ50mm |
| Shaft Diameter | Φ8mm |
| Resolution | 100 P/R |
| Output Phase | A/B/Z (3-phase) |
| Output Type | Voltage Output (Complementary) |
| Supply Voltage | DC5-24V ±10% |
| Current Consumption | 100mA max |
| Max Response Frequency | 50kHz |
| Max Rotational Speed | 5000rpm |
| Cable Length | 0.5m pre-wired |
| Protection Rating | IP50 |
| Operating Temperature | -10 to +70°C |
| Starting Torque | 1.5mN·m max |
| Shaft Load (Radial) | 50N max |
| Shaft Load (Axial) | 30N max |
Frequently Asked Questions
What is the body size of this encoder?
Φ50mm body diameter, which is larger than the E6B2 series (Φ40mm) for more robust industrial applications with higher shaft load capacity.
What output type does this encoder have?
Voltage output (complementary output) which provides better noise immunity compared to open collector outputs, making it suitable for electrically noisy industrial environments.
What is the shaft diameter?
Φ8mm shaft diameter for larger motor coupling applications. This provides higher torque transmission capacity compared to Φ6mm shafts.
Is there a 2m cable version available?
Yes, E6C2-CWZ5B 100P-R 2M has a 2-meter cable for extended installation reach without extension cables.
