SKU: E6CP-AG5C-C 256P-R 2M

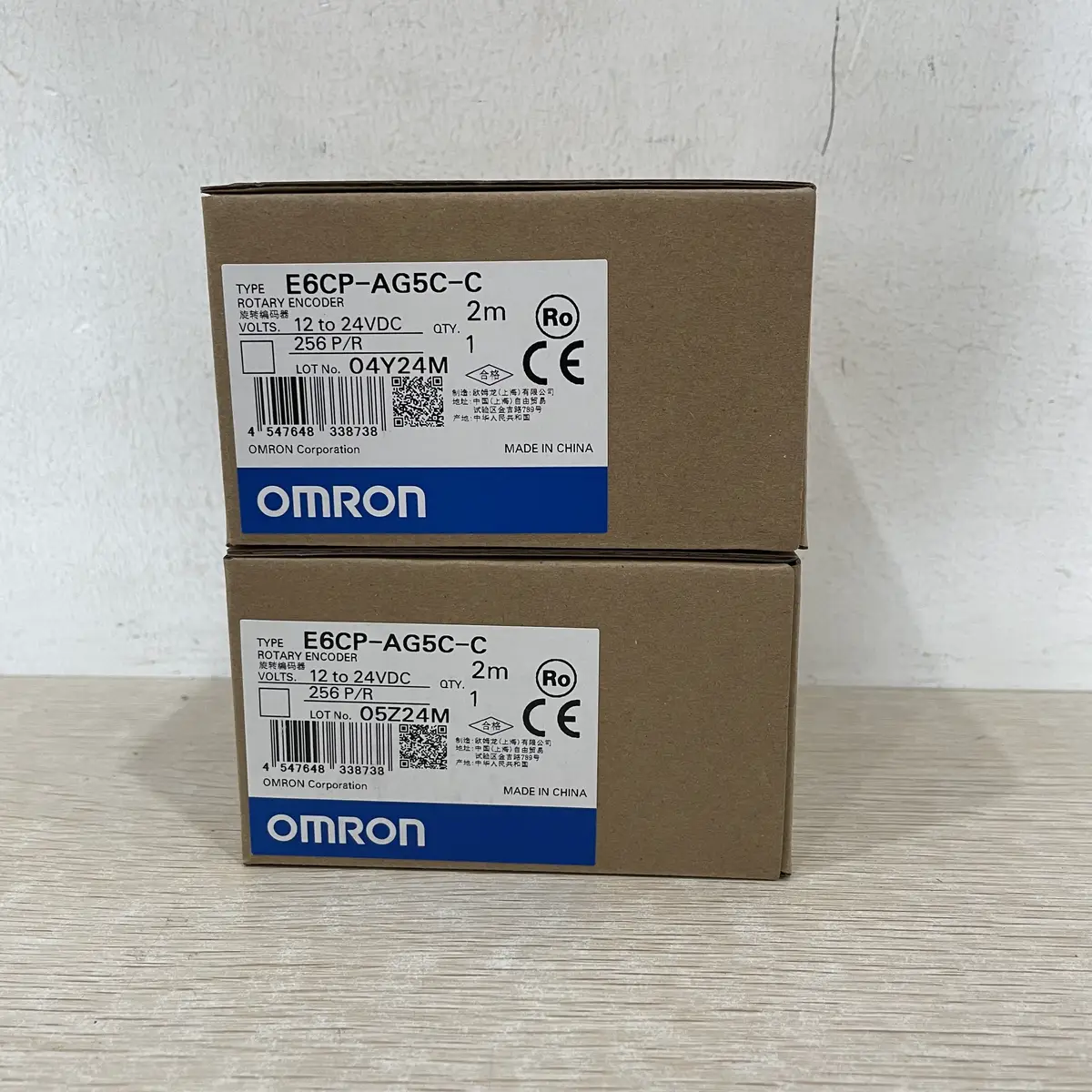

Omron E6CP-AG5C-C 256P-R 2M Absolute Rotary Encoder 256P Gray Code 2m Cable
Omron E6CP-AG5C-C 256P-R 2M is a Φ40mm absolute rotary encoder with 256 PPR Gray code, DC5-24V supply, 2m cable for absolute position detection with extended installation reach.
USD 63.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 256 pulses per revolution
- A/B quadrature output
- 10mm shaft diameter with D-cut
- Open-collector output
- 2-meter cable
- IP65 protection rating
- 5000 RPM max speed
Omron E6CP-AG5C-C Rotary Encoder
The Omron E6CP-AG5C-C 256P-R 2M is an incremental rotary encoder designed for position and speed sensing in industrial automation applications. This encoder provides 256 pulses per revolution (PPR) in a standard A/B quadrature output format, enabling precise position tracking and direction detection. The E6CP-AG5C-C features a 10mm diameter shaft with a standard D-cut, compatible with common motor and machinery shaft dimensions. The encoder uses an open-collector output configuration, providing compatibility with a wide range of PLC counters and motion controllers. The 2M suffix indicates a 2-meter cable length for flexible installation. With a maximum mechanical speed of 5000 RPM and an IP65 protection rating, this encoder is suitable for use in industrial environments including motor feedback, conveyor systems, and position monitoring applications. The compact design with servo flange mounting allows for easy installation in space-constrained locations.
Typical Applications
- Motor speed feedback
- Conveyor position tracking
- Rotational speed monitoring
- Position control systems
- Packaging machinery feedback
- Printing press registration
- CNC spindle positioning
- Elevator speed sensing
Buying Checklist
- Standard 256 PPR resolution
- Compatible with most PLC counters
- IP65 for industrial environments
- 2m cable reduces connection needs
- Proven Omron encoder quality
- Cost-effective feedback solution
- Easy servo flange mounting
Technical Specifications
| Model | E6CP-AG5C-C 256P-R 2M |
|---|---|
| Series | E6CP |
| Type | Absolute Rotary Encoder |
| Resolution | 256 P/R (8-bit) |
| Output Code | Gray Code (parallel) |
| Supply Voltage | DC5-24V ±10% |
| Cable Length | 2m pre-wired |
| Body Diameter | Φ40mm |
| Shaft Diameter | Φ6mm |
| Max Speed | 6000rpm |
| Protection | IP50 |
| Operating Temperature | -10 to +70°C |
| Output Type | Absolute Gray Code |
Frequently Asked Questions
What cable length does this encoder have?
2-meter pre-wired cable for extended installation reach without requiring extension cables.
What resolution does this provide?
256 PPR absolute position (8-bit Gray code) for single-turn absolute position feedback.
What output type is this?
Gray code parallel output for absolute position. Each position has a unique code that doesn't require homing.
What is the body size?
Φ40mm compact body diameter for space-constrained installations.
