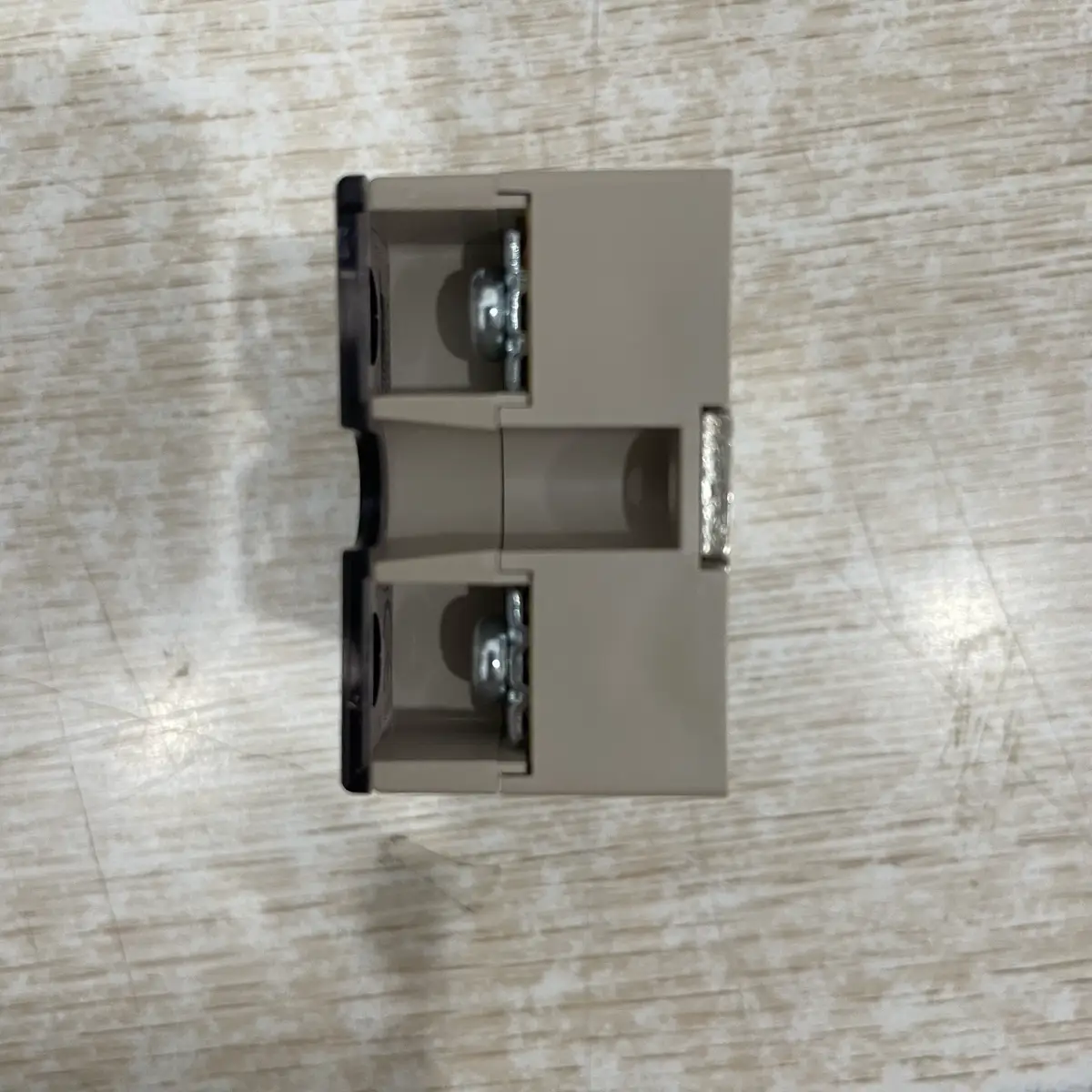

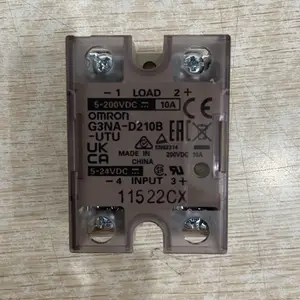

Omron G3NA-D210B-UTU DC Solid State Relay, 10 A
SKU: G3NA-D210B-UTUUSD 22.00
Omron G3NA-D210B-UTU 10 A DC-output solid state relay for 5–200 VDC loads, with 5–24 VDC control input and screw terminals.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G3NA-D210B-UTU is a single-pole solid state relay for switching DC loads. It combines a 5–200 VDC load range, a 10 A rating when correctly heat-sinked, and a 5–24 VDC control input.
The screw-terminal body provides an operation indicator and can be panel mounted or adapted for DIN-rail mounting. This is a DC-output model: do not use it for an AC load.
Before ordering, confirm the actual load current, inrush, ambient temperature and heat-sink requirement from Omron's derating data. For the AC-output alternative in the same G3NA form factor, see G3NA-210B-UTU DC5-24.
Key Features
- Single-pole DC-output SSR rated 10 A with the required heat sink
- 5–200 VDC load voltage and 5–24 VDC control input
- Screw terminals and operation indicator
- Panel mounting; DIN-rail installation requires the appropriate adapter
- SKU: G3NA-D210B-UTU
- Series: G3NA solid state relays
- Voltage: 200 VDC
Best-Fit Applications
- Switching a DC solenoid or resistive load where frequent operation makes mechanical contact wear undesirable.
- Replacement of an existing G3NA DC-output SSR after matching the load voltage, current, control input and thermal design.
- Low-voltage machine control where a PLC or controller supplies a 5–24 VDC control signal.
Buying Checklist
- Choose this model only for DC loads; G3NA-D210B-UTU is not an AC-output relay.
- Size the heat sink from the actual continuous current and cabinet temperature, not from the 10 A headline rating alone.
- Match the complete part number and check the required mounting adapter or heat sink separately.
Technical Specifications
| Manufacturer | Omron Corporation |
|---|---|
| Series | G3NA solid state relays |
| Model / SKU | G3NA-D210B-UTU |
| Output / load type | DC, single-pole, SPST-NO |
| Rated load voltage | 5–200 VDC |
| Rated load current | 10 A with heat sink; apply the manufacturer derating curve |
| Control input | 5–24 VDC, 7 mA maximum |
| Must-operate / must-release voltage | 4 VDC maximum operate; 1 VDC minimum release |
| Connection | Screw terminals |
| Dimensions | 58 × 43 × 27 mm |
FAQ for G3NA-D210B-UTU
Can the G3NA-D210B-UTU switch an AC load?
No. This model is for DC loads. The related G3NA-210B-UTU DC5-24 is the AC-output variant; verify its own load and input ratings before substituting it.
Does the G3NA-D210B-UTU need a heat sink?
Use the heat sink required by Omron's load-current and ambient-temperature derating data. The 10 A rating is conditional on suitable heat sinking; do not treat it as a universal rating without one.
Does zero-cross switching apply to this DC-output model?
No. Zero-cross control is relevant to AC switching and should not be used as a selection claim for this DC-output SSR.
What should I check before replacing an existing relay?
Match the full model number, DC load voltage and current, control voltage, mounting arrangement and heat-sink design. A similar G3NA housing does not by itself establish compatibility.
