SKU: G3PE-225BL DC12-24V

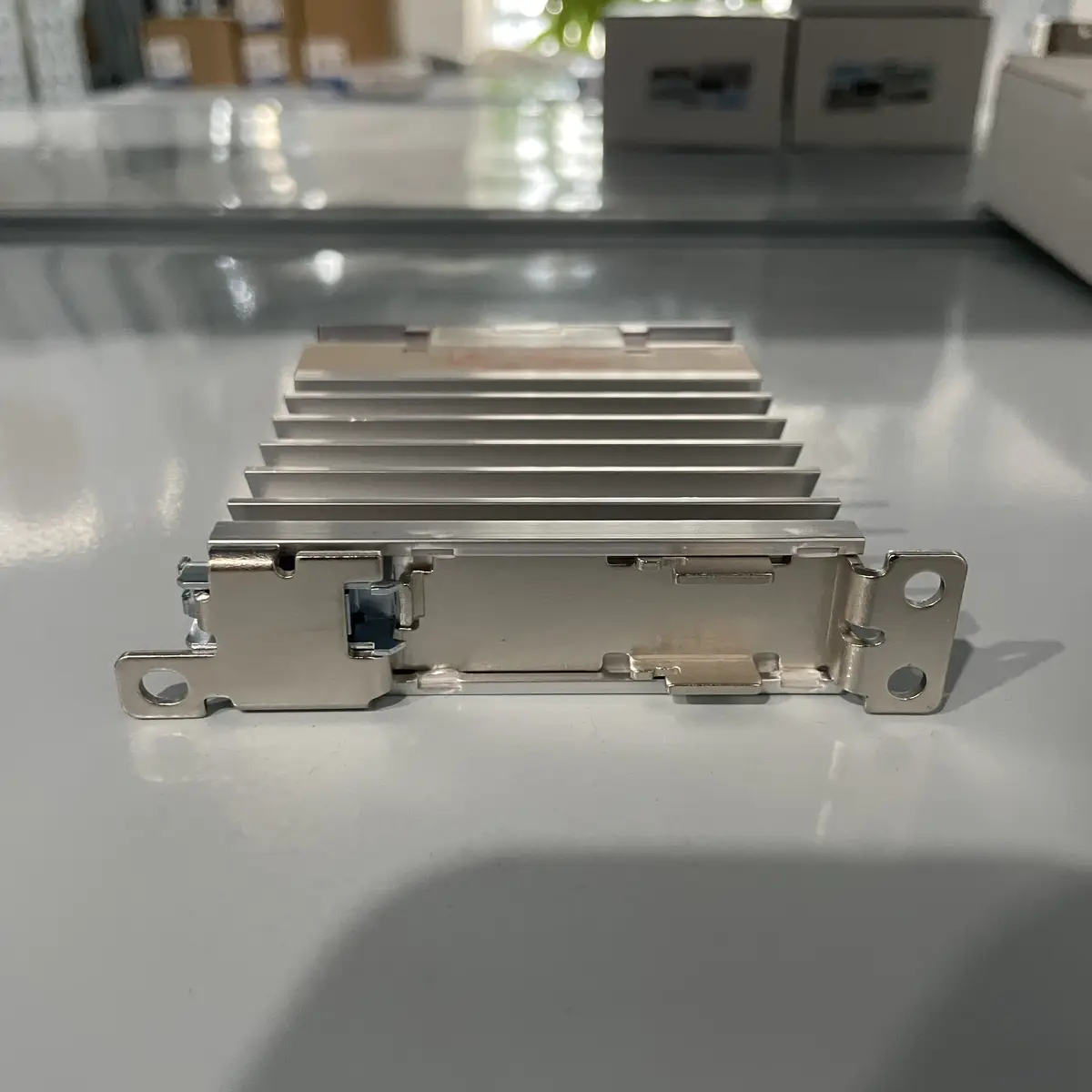

Omron G3PE-225BL DC12-24V Solid State Relay 25A with LED
Omron G3PE-225BL DC12-24V is a 25A solid state relay with DC12-24V control input, LED indicator for industrial heating applications.
USD 30.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Load Current: 25A
- Load Voltage: AC200-240V
- Control Input: DC12-24V
- Switching Method: Zero-cross
- Mounting: Panel mount
- LED Indicator: Input ON indicator
25A-Class SSR with Flexible DC Control Input
The G3PE-225BL DC12-24V is engineered for robust solid-state switching in automation cabinets where PLC transistor outputs or controller DC outputs drive AC loads. It supports repeatable operation in thermal process equipment.
DC 12-24V Input for Control Compatibility
Wide DC input range enables direct interfacing with common industrial control outputs, simplifying panel wiring and reducing interface components.
Stable Load Switching
Solid-state architecture provides predictable switching behavior over long duty cycles and helps improve uptime compared to contact-based alternatives in repetitive tasks.
Designed for Panel Environments
Mechanical and electrical characteristics support integration into standard industrial enclosures with proper thermal planning.
Typical Applications
- Interfaces directly to PLC transistor outputs
- Provides durable repetitive switching in thermal loops
- Reduces relay maintenance intervals
Buying Checklist
- Wide DC input range improves controller compatibility
- 25A-class capacity for common industrial heaters
- Contactless switching for long service life
- Proven form factor for panel builders
Technical Specifications
| Model | G3PE-225BL DC12-24V |
|---|---|
| Series | G3PE |
| Type | Solid State Relay (SSR) |
| Load Current | 25A |
| Load Voltage | AC200-240V |
| Control Input | DC12-24V |
| Switching Method | Zero-cross |
| Mounting | Panel mount |
| LED Indicator | Input ON indicator |
| Operating Temperature | -30 to +80°C |
Frequently Asked Questions
What's the advantage of G3PE series?
Panel mount design, integrated heat sink mounting, LED indicator. Cost-effective for medium-power applications.
Do I need additional heat sink?
Yes, G3PE requires external heat sink. Calculate heat sink size based on load current and ambient temperature.
What's the difference between G3PE-225B and G3PE-225BL?
G3PE-225BL has LED indicator. G3PE-225B without LED. Same electrical specifications.
Can this SSR be used for heater control?
Yes, common application for industrial heater control. Zero-cross switching reduces inrush current stress on heaters.
