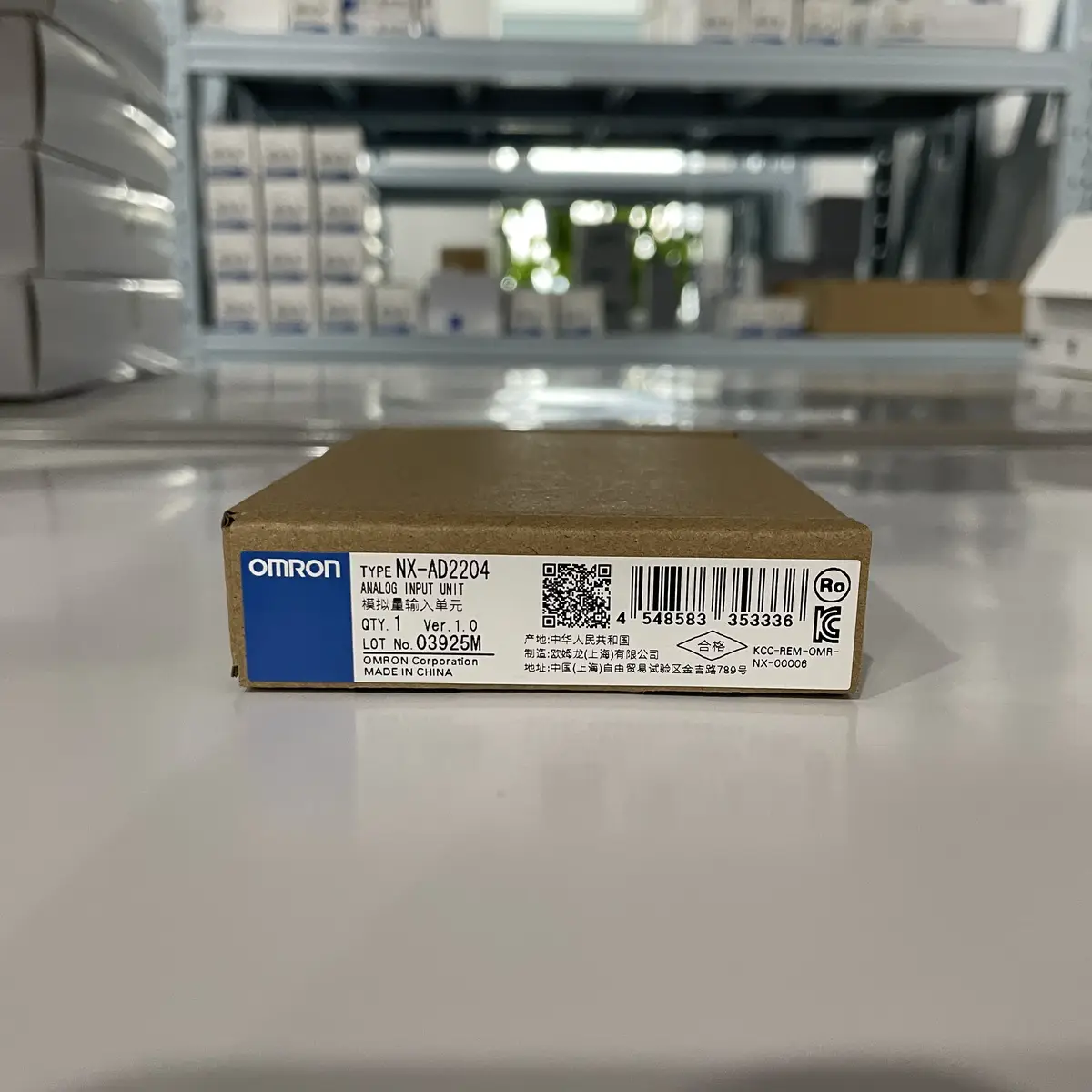

Omron NX-AD2204 Analog Input Unit 4 Channels for NX Automation
Omron NX-AD2204 is a 4-channel analog input unit for NX series, accepting voltage and current inputs for process monitoring.
USD 125.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 4 analog input channels in compact NX slice format
- Suitable for variable process feedback acquisition
- Supports mixed discrete and analog control strategies
- Integrates with Sysmac mapping and diagnostics workflows
- Useful for compact machines with moderate analog requirements
- Modular design enables straightforward system expansion
Compact Multi-Channel Analog Measurement for NX Control Panels
The NX-AD2204 provides four analog input channels to capture variable process data such as pressure, flow, level, and other transmitter signals. It is a practical option for machines that need moderate analog feedback without consuming excessive panel space. Within Sysmac environments, this unit supports structured parameter handling, stable data acquisition, and maintainable expansion strategies for evolving automation requirements.
Typical Applications
- Reading pressure transmitters in pneumatic circuits
- Monitoring level signals in dosing tanks
- Collecting flow feedback in utility skids
- Capturing quality-related process variables
- Adding analog measurement channels in retrofit projects
- Standardizing 4-channel feedback blocks in OEM machines
Buying Checklist
- Balanced channel count for compact applications
- Improves process visibility and control quality
- Sysmac-native integration reduces engineering effort
- Good option for phased analog expansion
- Supports reliable long-term maintenance workflows
Technical Specifications
| Model | NX-AD2204 |
|---|---|
| Series | NX |
| Type | Analog Input Unit |
| Input Channels | 4 channels |
| Input Types | Voltage: 0-10V; Current: 0-20mA, 4-20mA |
| Resolution | 1/32000 |
| Accuracy | ±0.1% full scale |
| Conversion Time | 1ms per channel |
| Isolation | Channel-to-channel isolated |
| Connection | Push-in terminals |
| Current Consumption | 50mA at 5VDC |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What's the difference between AD2203 and AD2204?
AD2203: 3 channels. AD2204: 4 channels. Same electrical specifications. Choose based on channel count requirements.
Can I configure each channel independently?
Yes, each channel independently configurable for voltage or current.
What's the conversion time?
1ms per channel. For 4 channels: 4ms total scan time.
Do I need external power for 4-20mA sensors?
No, unit provides 24VDC supply for 2-wire transmitters.
