SKU: NX-AD2208

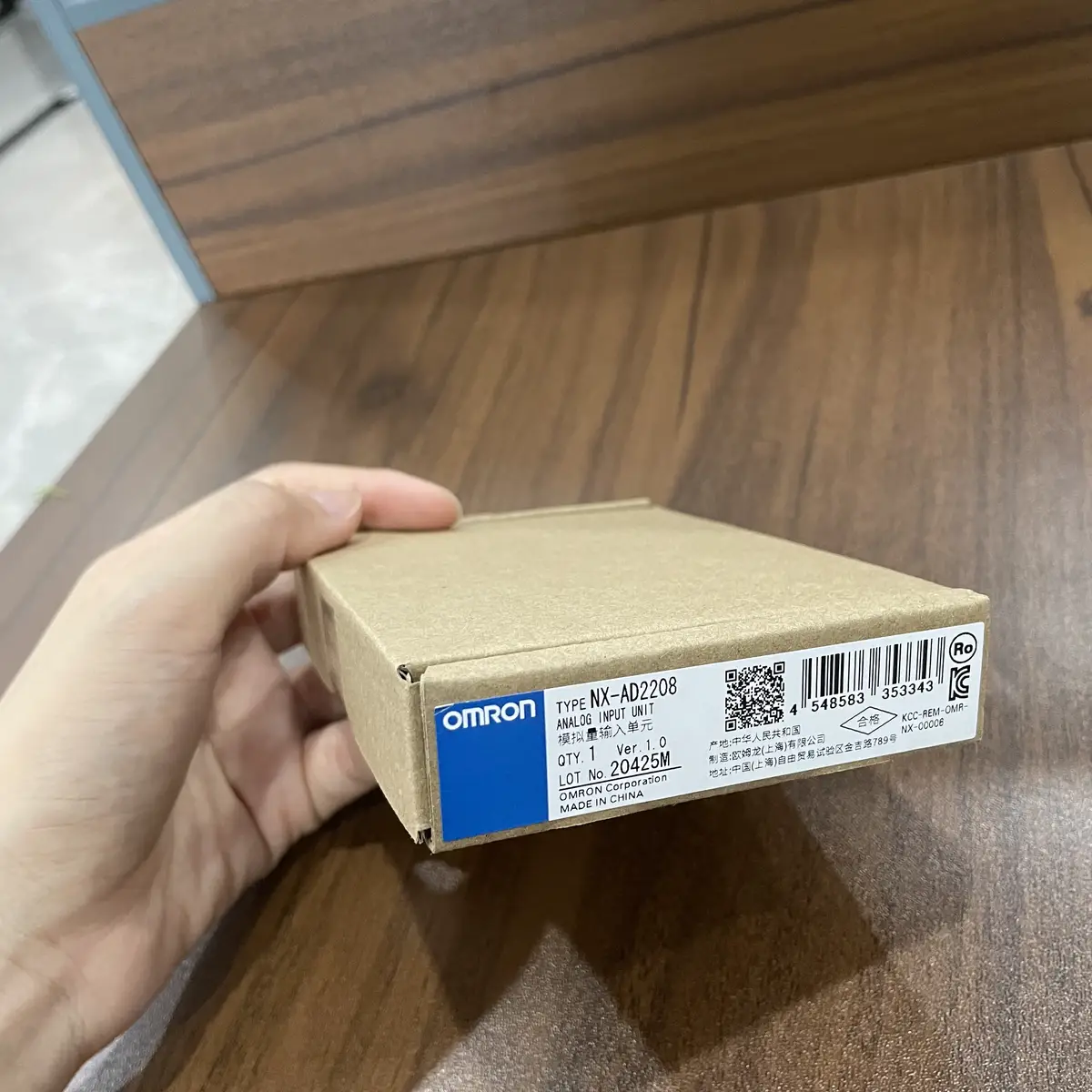

Omron NX-AD2208 Analog Input Unit 8 Channels for NX Automation Systems
Omron NX-AD2208 is an 8-channel analog input unit for NX series, providing high-density analog input for process monitoring.
USD 378.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 8 analog input channels in one modular NX slice
- Enables high-density process signal collection
- Suitable for hybrid machine and utility control applications
- Sysmac-native integration for unified diagnostics and mapping
- Supports data-rich control strategies and trend analysis
- Reduces module count compared with low-channel alternatives
High-Channel Analog Data Acquisition in Compact NX Format
The NX-AD2208 is designed for machines and utility skids that need multiple analog measurements in one compact I/O slice. It supports centralized collection of variable signals such as pressure, level, temperature transmitters, and other process feedback points. Integrated into Sysmac environments, this unit helps engineers implement scalable monitoring and control logic while keeping cabinet layout clean and maintainable.
Typical Applications
- Reading multiple pressure and flow transmitters in skids
- Monitoring analog process variables across machine stations
- Collecting quality-related sensor trends for analytics
- Supporting closed-loop control with richer feedback data
- Expanding existing NX racks for additional process visibility
- Standardizing analog input architecture in OEM designs
Buying Checklist
- 8-channel density lowers total module footprint and wiring effort
- Improves process visibility for optimization and troubleshooting
- Scales cleanly in Sysmac-based machine platforms
- Good option for mixed discrete-plus-analog control projects
- Strong fit for data-driven production improvements
Technical Specifications
| Model | NX-AD2208 |
|---|---|
| Series | NX |
| Type | Analog Input Unit |
| Input Channels | 8 channels |
| Input Types | Voltage: 0-10V; Current: 0-20mA, 4-20mA |
| Resolution | 1/32000 |
| Accuracy | ±0.1% full scale |
| Conversion Time | 1ms per channel |
| Isolation | Channel-to-channel isolated |
| Connection | Push-in terminals |
| Current Consumption | 80mA at 5VDC |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What's the advantage of 8-channel unit?
Higher density: 8 channels in compact unit. More cost-effective per channel. Reduces number of units for large analog input requirements.
Can I configure each channel independently?
Yes, each channel independently configurable for voltage or current.
What's the conversion time?
1ms per channel. For 8 channels: 8ms total scan time.
Do I need external power for 4-20mA sensors?
No, unit provides 24VDC supply for 2-wire transmitters.
