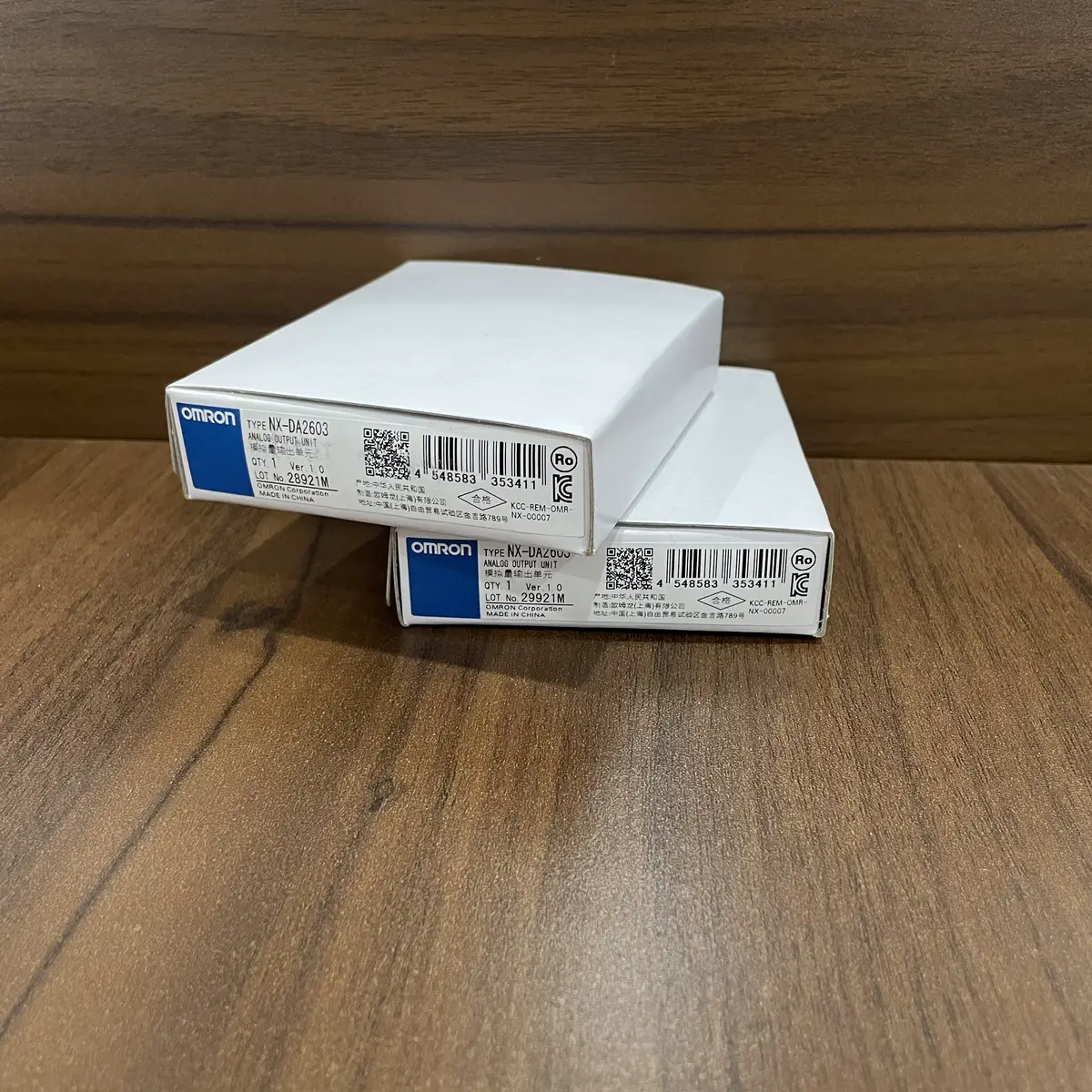

Omron NX-DA2603 2-Channel Analog Voltage Output
SKU: NX-DA2603USD 145.00
Omron NX-DA2603 NX I/O unit with two −10 to +10 V analog outputs, 1/8000 resolution, 0.5 ms conversion per unit and an 8-terminal push-in connector.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-DA2603 is a two-channel analog voltage output unit for the NX I/O bus. It converts controller values into two −10 to +10 V signals at 1/8000 resolution, with Free-Run signal processing and 0.5 ms conversion time per unit.
The 12 mm-wide unit uses a removable screwless push-in connector with eight wiring terminals. It is an NX I/O unit, not a controller option board, and it does not provide isolation between its two output channels.
Use it where two general-purpose bipolar voltage references are required. For four voltage outputs in the same resolution class, see NX-DA3603. For current-loop applications, select an NX current-output model instead of adding external conversion without reviewing the loop design.
Key Features
- Two analog voltage outputs, each −10 to +10 V
- 1/8000 (13-bit) resolution and 0.5 ms conversion time per unit
- Free-Run signal processing; no synchronous I/O refresh
- Removable 8-terminal screwless push-in connector, 12 mm width and IP20
- SKU: NX-DA2603
- Series: NX I/O — NX-DA analog output units
Best-Fit Applications
- Bipolar speed or position references for drives and actuators with a −10 to +10 V input.
- Two-channel analog command output on an NX I/O station.
- General-purpose machine control where Free-Run output updating meets the required response.
Buying Checklist
- Choose NX-DA2603 for two −10 to +10 V outputs at 1/8000 resolution.
- Choose NX-DA3603 when the same voltage and resolution are required on four channels.
- Confirm the receiving device's input impedance, common-mode wiring and refresh requirements before installation.
Technical Specifications
| Manufacturer | Omron Corporation |
|---|---|
| Series | NX I/O — NX-DA analog output units |
| Model / SKU | NX-DA2603 |
| Analog outputs | 2 channels |
| Output range | −10 to +10 V |
| Resolution | 1/8000 (13-bit) |
| Conversion time | 0.5 ms per unit (250 µs per channel) |
| Signal processing | Free-Run |
| Accuracy | ±0.3% full scale at 25 °C; ±0.5% full scale over 0 to +55 °C |
| Load / output impedance | 5 kΩ minimum load / 0.5 Ω maximum output impedance |
| Isolation | Output-to-NX-bus isolation; no isolation between output channels |
| I/O connection | Removable screwless push-in connector, 8 wiring terminals; NX-TBA082 spare |
| Dimensions / weight | 12 × 104.5 × 80.1 mm / 70 g |
| Protection | IP20 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-DA2603
What does the Omron NX-DA2603 output?
Two analog voltage signals in the −10 to +10 V range at 1/8000 resolution. It is an NX I/O unit, not a controller option board or a current-output module.
Does NX-DA2603 support synchronous I/O refresh?
No. Omron lists Free-Run signal processing for this model. Select a different NX analog output unit if the application requires synchronous refresh.
Which terminal block does NX-DA2603 use?
A removable screwless push-in connector with eight wiring terminals. Omron lists NX-TBA082 as the replacement connector.
What is the difference between NX-DA2603 and NX-DA3603?
Both provide −10 to +10 V outputs at 1/8000 resolution. NX-DA2603 has two channels; NX-DA3603 has four. Confirm conversion, wiring and refresh requirements for the complete NX configuration.
