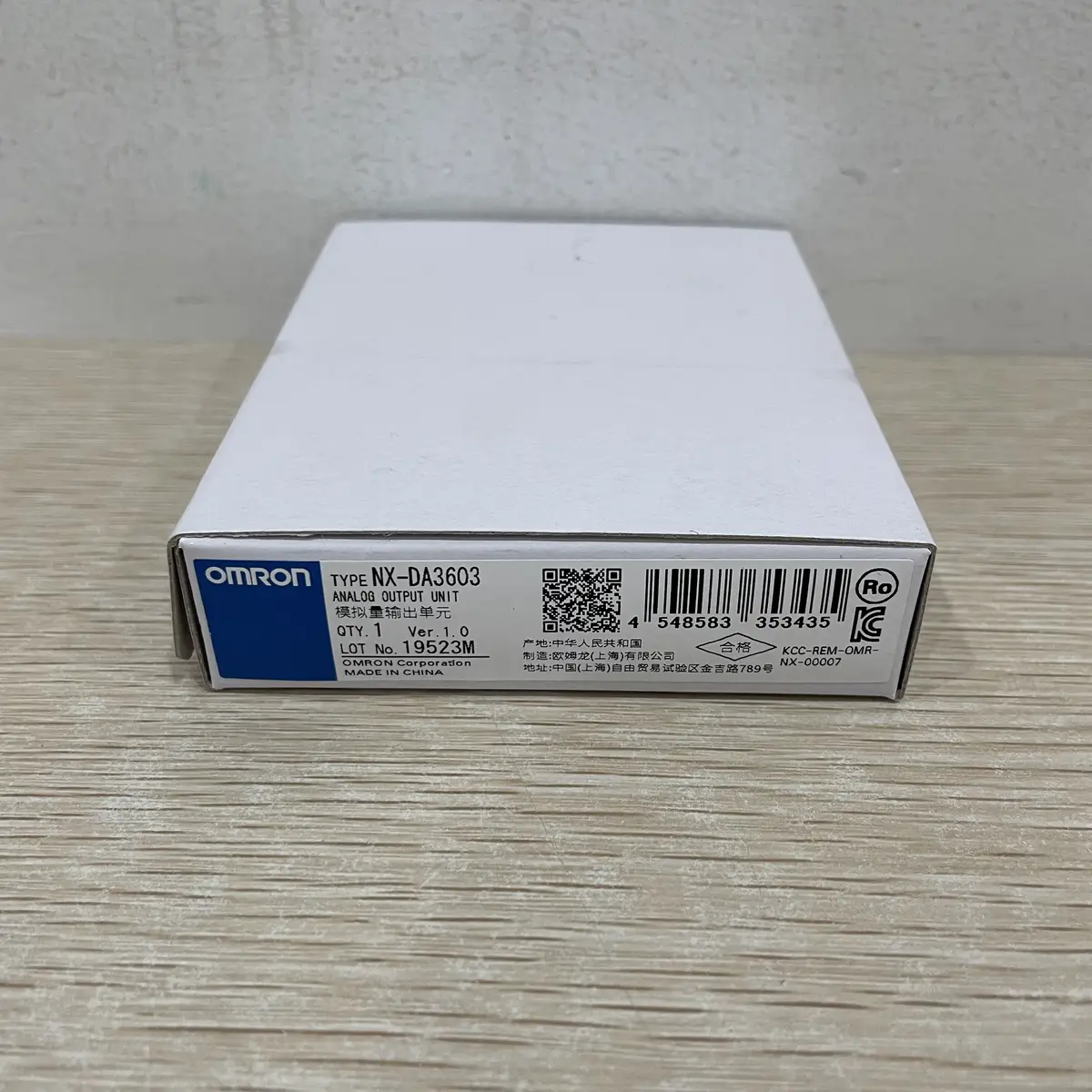

Omron NX-DA3603 4-Channel Analog Voltage Output
SKU: NX-DA3603USD 182.00
Omron NX-DA3603 NX I/O unit with four −10 to +10 V analog outputs, 1/8000 resolution, Free-Run processing and a removable 8-terminal push-in connector.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-DA3603 is a four-channel analog voltage output unit for the NX I/O bus. It provides four −10 to +10 V outputs at 1/8000 resolution, with Free-Run signal processing and 0.5 ms conversion time per unit.
The 12 mm-wide housing uses a removable screwless push-in connector with eight wiring terminals. This is an NX I/O unit rather than a controller option board; output channels are not isolated from one another.
Choose it when four bipolar voltage commands are needed in one unit. NX-DA2603 provides two channels in the same voltage and resolution class. For current-loop loads, compare the dedicated NX current-output models instead of assuming voltage and current outputs are interchangeable.
Key Features
- Four analog voltage outputs, each −10 to +10 V
- 1/8000 (13-bit) resolution and 0.5 ms conversion time per unit
- Free-Run signal processing; no synchronous I/O refresh
- Removable 8-terminal screwless push-in connector, 12 mm width and IP20
- SKU: NX-DA3603
- Series: NX I/O — NX-DA analog output units
Best-Fit Applications
- Four bipolar speed or position references from one NX analog output unit.
- Analog command signals for proportional valves, actuators or drives with suitable voltage inputs.
- NX I/O stations where four general-purpose outputs reduce the number of installed units.
Buying Checklist
- Choose NX-DA3603 for four −10 to +10 V outputs at 1/8000 resolution.
- Choose NX-DA2603 when only two voltage outputs are required.
- Verify input impedance, channel commons, terminal wiring and Free-Run response for every connected load.
Technical Specifications
| Manufacturer | Omron Corporation |
|---|---|
| Series | NX I/O — NX-DA analog output units |
| Model / SKU | NX-DA3603 |
| Analog outputs | 4 channels |
| Output range | −10 to +10 V |
| Resolution | 1/8000 (13-bit) |
| Conversion time | 0.5 ms per unit |
| Signal processing | Free-Run |
| Accuracy | ±0.3% full scale at 25 °C; ±0.5% full scale over 0 to +55 °C |
| Load / output impedance | 5 kΩ minimum load / 0.5 Ω maximum output impedance |
| Isolation | Output-to-NX-bus isolation; no isolation between output channels |
| I/O connection | Removable screwless push-in connector, 8 wiring terminals; NX-TBA082 spare |
| Dimensions / weight | 12 × 104.5 × 80.1 mm / 70 g |
| Protection | IP20 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-DA3603
What does the Omron NX-DA3603 output?
Four analog voltage signals in the −10 to +10 V range at 1/8000 resolution. It is an NX I/O unit, not a four-channel current-output unit.
Does NX-DA3603 support synchronous I/O refresh?
No. This model uses Free-Run signal processing. Review the NX analog I/O lineup if synchronous updating is a design requirement.
What is the difference between NX-DA3603 and NX-DA2603?
NX-DA3603 has four −10 to +10 V channels; NX-DA2603 has two. Both are in the 1/8000 resolution class and use removable screwless push-in wiring.
Can NX-DA3603 directly provide a 4–20 mA loop?
No. This model provides voltage output. Use a suitable NX current-output unit for a 4–20 mA application and confirm the required loop supply and wiring separately.
