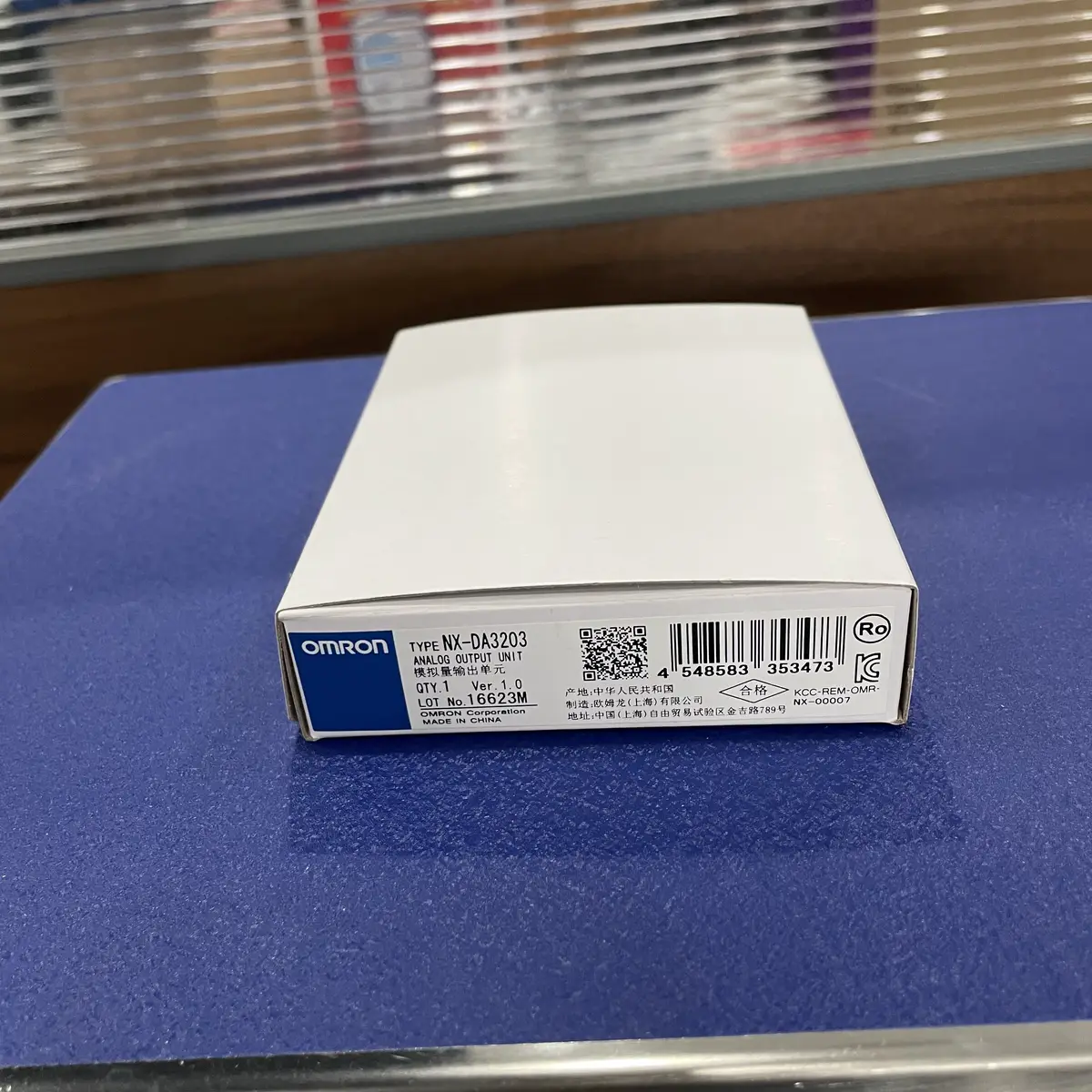

Omron NX-DA3203 Analog Output Unit 4-Channel 4-20mA
Omron NX-DA3203 is a 4-channel analog output unit for NX series, providing 4-20mA current output for process control.
USD 190.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 4-channel analog output for compact process command expansion
- 4-20mA output support for common industrial devices
- EtherCAT slave integration for deterministic architecture
- Suitable for valves, process interfaces, and analog drives
- Supports scalable NX mixed-signal system design
- Improves maintainability with modular channel diagnostics
Multi-Channel Analog Command Output for EtherCAT-Based Process Integration
The NX-DA3203 expands NX control systems with four analog current outputs to drive valves, drives, and process devices requiring variable command signals. As an EtherCAT-integrated module, it supports deterministic networked control architectures. This unit is suitable for mixed-signal machines needing compact, maintainable analog output expansion.
Typical Applications
- Sending control setpoints to proportional valves
- Outputting analog speed references to process drives
- Expanding process command channels in NX systems
- Modernizing analog control sections in retrofit projects
- Standardizing 4-channel analog output blocks in OEM platforms
- Improving control precision in mixed discrete/process machines
Buying Checklist
- 4 channels increase analog command capacity efficiently
- 4-20mA compatibility matches common process devices
- EtherCAT integration supports modern control architecture
- Practical for scalable mixed-signal automation growth
- Strong fit for precision process command applications
Technical Specifications
| Model | NX-DA3203 |
|---|---|
| Series | NX |
| Type | Analog Output Unit |
| Output Channels | 4 channels |
| Output Type | Current: 0-20mA, 4-20mA |
| Resolution | 1/32000 |
| Accuracy | ±0.1% full scale |
| Conversion Time | 1ms per channel |
| Load Resistance | 600Ω max |
| Isolation | Channel-to-channel isolated |
| Connection | Push-in terminals |
| Current Consumption | 80mA at 5VDC |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What devices can I control with analog output?
VFD speed reference (4-20mA), proportional valves, temperature controller setpoint, chart recorders, analog indicators, and any device accepting standard analog signals.
How do I configure current output?
Set via DIP switches on unit front. Each channel independently configurable. Current: connect to I+ and COM. Refer to unit manual for switch settings.
What's the output update rate?
1ms per channel. For 4 channels: 4ms total update time. Sufficient for most process control applications.
Can I use this for closed-loop control?
Yes, common application. Controller reads process variable (analog input), calculates PID, writes output (analog output) to control valve/VFD.
