SKU: P7SA-10F-ND-PU DC24

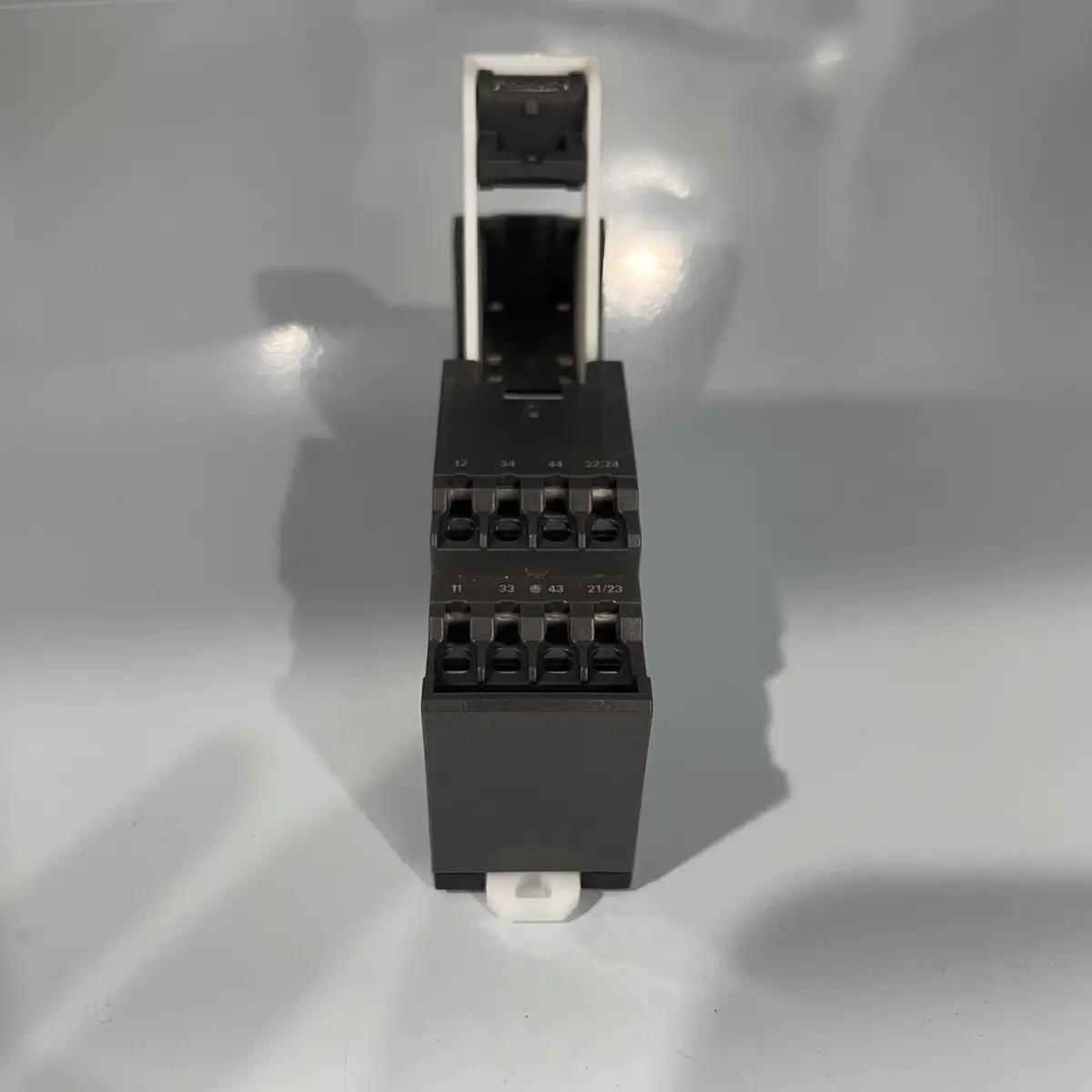

Omron P7SA-10F-ND-PU DC24 Safety Relay Module 24VDC
Omron P7SA-10F-ND-PU DC24 is a safety relay module with 24VDC supply for emergency stop and safety gate monitoring.
USD 13.50 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 4-pole relay base format for safety circuit applications
- Push-in terminal technology for faster panel wiring
- DIN rail mounting for structured cabinet layout
- Designed for DC24 safety relay system integration
- Supports easier relay replacement and service access
- Useful in OEM and retrofit safety control builds
4-Pole Push-In Safety Relay Base for Maintainable Machine Safety Panels
The P7SA-10F-ND-PU DC24 supports safe and organized relay mounting in control cabinets where safety circuit reliability is essential. Its push-in terminal design helps accelerate panel assembly and simplifies service during relay replacement. This base is commonly used in OEM safety panels and retrofit upgrades to improve wiring quality and lifecycle maintainability.
Typical Applications
- Mounting safety relays in guard interlock panels
- Building emergency-stop relay sections in compact cabinets
- Standardizing push-in relay bases in OEM safety designs
- Replacing older screw-type safety relay sockets
- Improving assembly speed in production panel build lines
- Supporting maintainable lifecycle service in safety systems
Buying Checklist
- Push-in terminals improve wiring efficiency
- DIN rail format supports organized safety panel layouts
- 4-pole base fits common safety relay configurations
- Improves long-term maintenance and replacement workflows
- Practical component for compliance-oriented machine designs
Technical Specifications
| Model | P7SA-10F-ND-PU DC24 |
|---|---|
| Series | P7SA |
| Safety Inputs | 2 channels |
| Safety Outputs | 3NC (forced guided) |
| Supply Voltage | DC24V |
| Safety Category | Category 4, PL e |
| SIL | SIL 3 |
| Mounting | DIN rail |
| Manual Reset | Yes |
| LED Indicators | Status LEDs |
Frequently Asked Questions
What does -PU suffix mean?
-PU indicates packaged unit with specific supply voltage (DC24V in this case). Standard P7SA-10F-ND accepts AC/DC24V. -PU version is DC-only, typically lower cost.
How do I reset after safety event?
After safety device (E-stop, gate) is restored, press manual reset button. Module checks inputs, if all safe, energizes outputs. LED indicators show reset status.
Can this module monitor light curtains?
Yes, wire light curtain OSSD outputs to safety inputs. Ensure light curtain is Category 4 rated. Module provides additional safety monitoring and contact amplification.
What's the expected life?
10+ years at rated conditions. Safety contacts: 100,000 operations at rated load. Regular testing recommended per machine safety requirements (typically annually).
