SKU: NX-PD1000

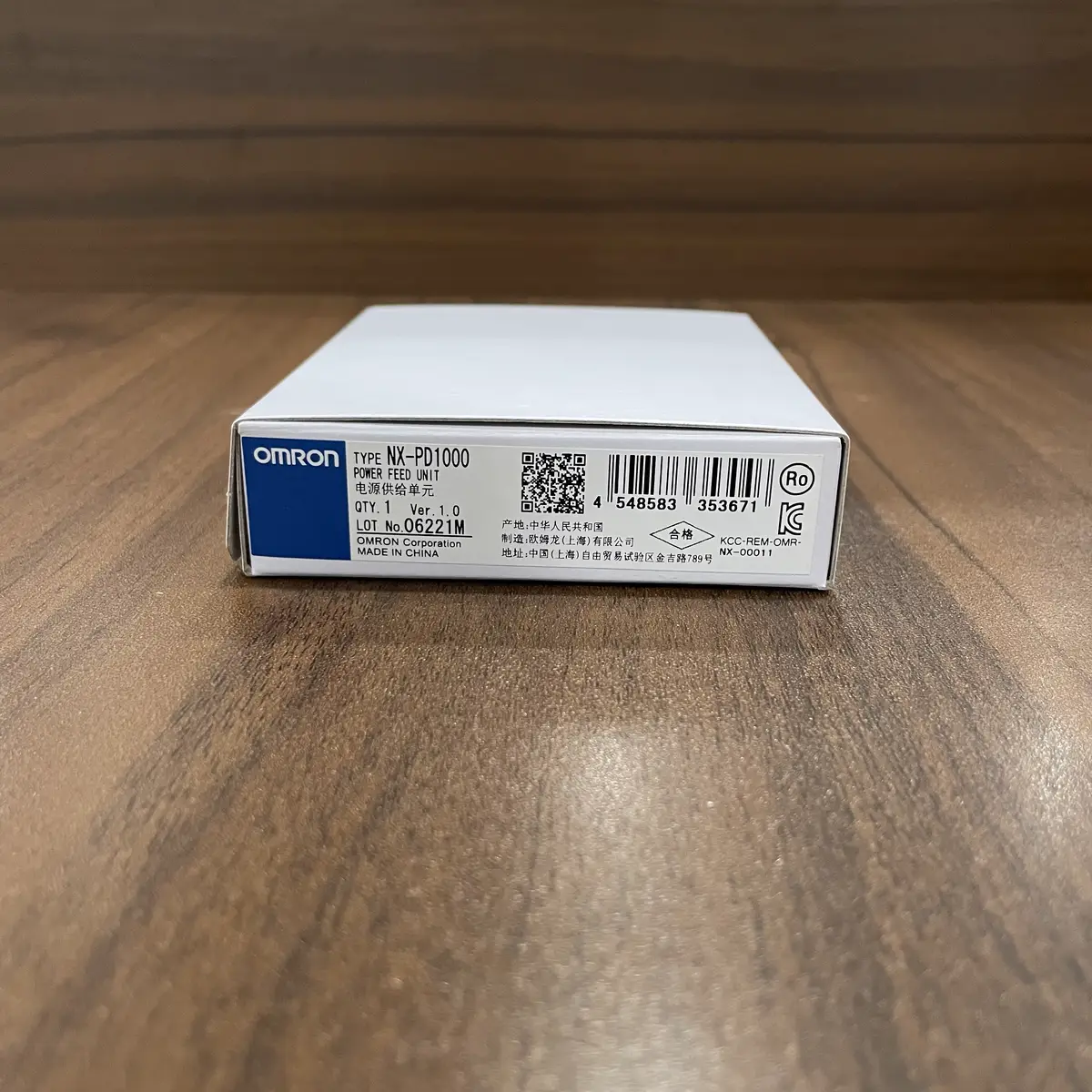

Omron NX-PD1000 NX Series Power Supply Unit 24VDC 5A
Omron NX-PD1000 is a 24VDC 5A power supply unit for NX series I/O systems, providing reliable power distribution.
USD 33.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 24VDC output at 5A
- Wide input voltage range 100-240VAC
- Direct NX bus connection
- DIN rail mounting
- Input/output status indicators
- Isolated output channels
- Compact design
Omron NX-PD1000 Power Supply Unit
The Omron NX-PD1000 is a power supply unit designed specifically for the NX series modular I/O system. This unit provides a stable 24VDC output with a current rating of 5 amps, sufficient to power the NX coupler and connected I/O units in typical configurations. The NX-PD1000 features a compact modular design that connects directly to the NX bus, simplifying system assembly and reducing panel space requirements. The power supply includes input voltage monitoring and output status indicators, allowing quick diagnosis of power-related issues. With its DIN rail mounting design, the NX-PD1000 integrates seamlessly into standard industrial control panels. The unit operates from a wide input voltage range of 100-240 VAC, making it suitable for use in various global power configurations. The NX-PD1000 provides isolated output channels to protect against ground loops and ensure reliable operation of sensitive I/O circuits.
Typical Applications
- NX I/O system power supply
- Distributed I/O power distribution
- Control panel power supply
- Machine automation power
- Process control power systems
- Panel power redundancy
Buying Checklist
- Sized perfectly for NX I/O systems
- Wide input voltage for global use
- Integrated NX bus simplifies wiring
- Status LEDs for easy diagnostics
- Compact DIN rail design
- Reliable Omron quality
- Cost-effective power solution
Technical Specifications
| Model | NX-PD1000 |
|---|---|
| Series | NX |
| Type | Power Supply Unit |
| Output Voltage | 24VDC |
| Output Current | 5A |
| Output Power | 120W |
| Input Voltage | 24VDC (20.4-28.8V) |
| Efficiency | 90% typical |
| Protection | Overcurrent, overvoltage |
| Connection | Push-in terminals |
| Current Consumption | 5.5A at 24VDC |
| Mounting | DIN rail |
| Operating Temperature | 0 to +55°C |
| Dimensions | 12 x 100 x 70mm |
Frequently Asked Questions
How many NX I/O units can this power supply support?
Depends on I/O unit consumption. Typical NX unit: 30-50mA. NX-PD1000 (5A) can power approximately 80-100 NX units. Calculate total consumption before sizing.
Do I need external 24VDC supply for this unit?
Yes, NX-PD1000 distributes 24VDC from external supply to NX I/O bus. Connect external 24VDC supply to NX-PD1000 input terminals.
Can I parallel power supplies for redundancy?
Yes, use diode OR-ing module for parallel operation. Provides redundancy if one supply fails. Ensure both supplies have same output voltage.
What happens during overcurrent?
Internal protection shuts off output. Fault indicated on unit. Output resets when overload removed and power cycled. Repeated faults may damage unit.
