SKU: P2CF-08-E

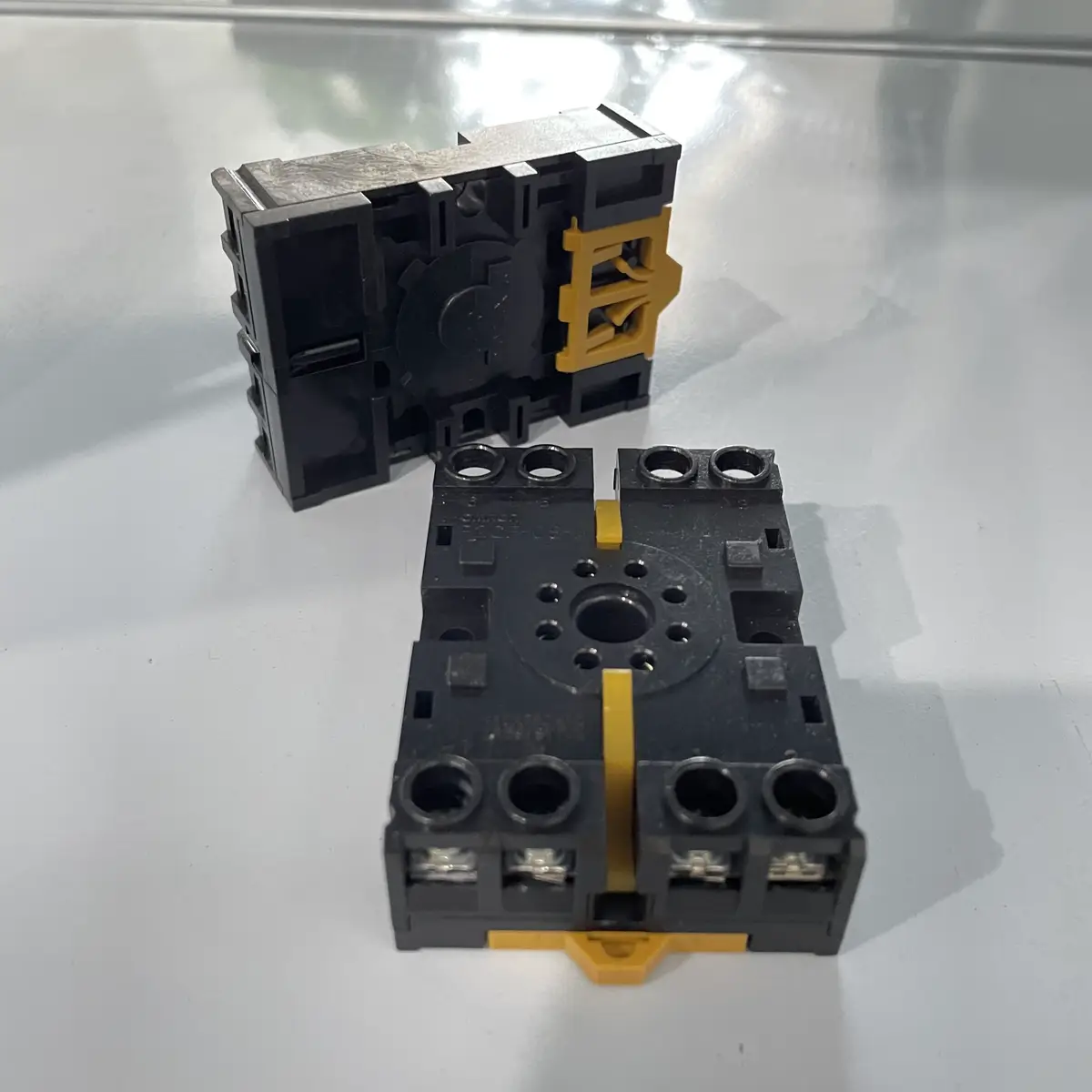

Omron P2CF-08-E Relay Socket 8-Pin Front Connection
Omron P2CF-08-E is an 8-pin relay socket with front connection terminals for G2R-2 series and LY2 series relays.
USD 5.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Pin Count: 8-pin
- Connection Type: Front screw terminals
- Compatible Relays: G2R-2, LY2, MY2 series
- Terminal Capacity: 22-14 AWG (0.5-2.5mm²)
- Mounting: Panel or DIN rail
- Rated Current: 10A
Robust Switching Interface for High-Uptime Control Panels
The P2CF-08-E provides a practical interface between controller outputs and field loads. In high-cycle or uptime-sensitive applications, this class of component supports cleaner switching behavior, reduced wear concerns, and easier panel-level standardization.
Controller-to-Load Interface Reliability
Relay/SSR devices isolate control electronics from field-side switching demands and provide a practical interface layer in mixed-load control systems.
High-Cycle Switching Practicality
For frequent switching duty, proper relay/SSR selection improves panel reliability and can reduce maintenance compared with under-rated or mismatched alternatives.
Panel Standardization Benefits
Using consistent relay/SSR classes across equipment simplifies wiring conventions, spare inventory, and technician troubleshooting workflows.
Typical Applications
- Isolates controller outputs from field loads
- Provides reliable switching for control branches
- Supports higher cycle operation with proper selection
- Improves panel maintainability and spare planning
- Reduces unplanned downtime from contact wear issues
- Enables cleaner wiring architecture in control cabinets
Buying Checklist
- Practical controller-to-load interface
- Supports high-duty panel switching
- Improves reliability with proper sizing
- Aids standardization of control wiring
- Strong lifecycle service value
Technical Specifications
| Model | P2CF-08-E |
|---|---|
| Series | P2CF |
| Type | Relay Socket |
| Pin Count | 8-pin |
| Connection Type | Front screw terminals |
| Compatible Relays | G2R-2, LY2, MY2 series |
| Terminal Capacity | 22-14 AWG (0.5-2.5mm²) |
| Mounting | Panel or DIN rail |
| Rated Current | 10A |
| Rated Voltage | 250VAC |
| Operating Temperature | -40 to +70°C |
| Material | PBT (flame retardant) |
| Certifications | CE, UL, CSA |
Frequently Asked Questions
What relays fit this socket?
8-pin tube base relays: G2R-2 series, LY2 series, MY2 series, H3YN timers, H5CC counters. Standard 8-pin ice cube and modern square relays.
What's the difference between P2CF and P2RF?
P2CF: front connection (terminals accessible from front). P2RF: rear connection (terminals accessible from back). Choose based on panel wiring preference and accessibility.
Can I mount this on DIN rail?
Yes, P2CF-08-E includes DIN rail clip. Also supports direct panel mounting with screws. DIN rail mounting is faster and allows easy repositioning.
What wire size fits the terminals?
22-14 AWG (0.5-2.5mm²) solid or stranded wire. Use ferrules for stranded wire. Torque: 0.5-0.6 N·m.
